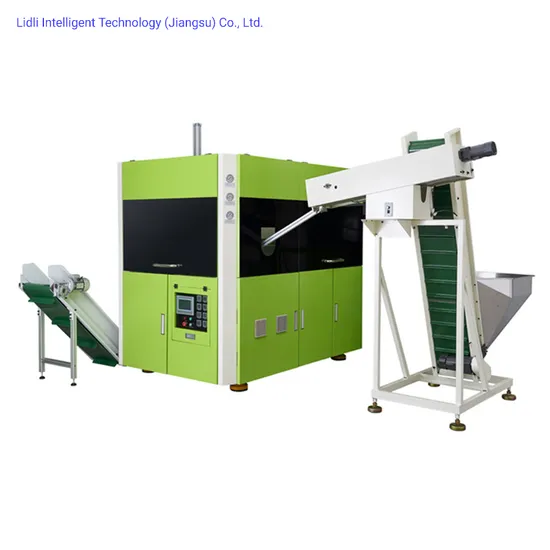

20 Liter Pet Bottle Blowing Machine

Product Description

INTRODUCTION FOR 5 GALLON 20L BOTTLE BLOWING MACHINE
This equipment can produce different types of food, cooking oil bottles, carbonated drinks, mineral water bottles, juice bottles, wine bottles, tennis balls can, cosmetic bottles, etc.
A.FLOW RATE
B.TECHNICAL DATA
1.1Four Servo Motor Drive makes the machine drive system fully electrical.
a.Servo drives Preform Feeding System;
b.Servo drives Preform Transfer System;
c.Servo drives Mold Clamping System;
d.Servo drives Stretch System.
1.2Schneider Motion Control System
Mitsubishi PLC Servo System as the brain of the machine. PTO System (Pulse/Train/Output Servo Positioning Module) works on high-speed positioning, with higher speed, higher noise immunity, and precise positioning.
1.3Mold Fixed by Drawer Design
Push the mold, fix the positioning screws. Mold changeover work can be easily done in a half-hour.
1.4High efficient Infrared Lamp, Oven Constant Temperature Design.
a.The most advanced high-frequency Infrared Lamp, increases heating efficiency by 30%-50%.
b.Each layer of the lamp is separately controlled, with an assistant ruler on a machine.
c.Intelligent temperature control system.
Temperature detector feedback to PLC automatically, PLC makes an accurate judgment and then controls circulation air in the oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45 ºC).
d.Preform self-rotation System, ensure every side of every preform is heated evenly, which ensures the quality of the blown bottle.
e.Neck Cooling in Oven.
Preform Necks are cooled by recycling water, which avoids neck deformation.
Specification

Container spec	Max volume	20L
	Max diameter	∅280mm
	Neck size	≤∅70mm
	Max bottle height	420mm
	Max perform height	280mm
	Theoretical output(BPH)	300-400 BPH(300g)
Molding spec	Clamping stroke	320mm
	Width of mold	680mm
	Bottom stroke	50mm
	Thickness of mold	400mm
	Number of cavities	1
other	Cavity pitch	78mm
	Power consumption	30 KW
	Operation pressure	0.8-1.0Mpa
	Blowing pressure	2.8-3.5Mpa
	Lamp layer	12 layers
	Heating holder number	76 pcs
	Heating area	5
	Rated power	80KW
	High-pressure air consumption	5.2 m3/min
	Main machine weight	4.8T
	Main machine size	3500X2100X2300(main machine) 4900X4000X2900(footprint)

Configuration of Blow Molding Machine

	Description	Brand	Origin
	PLC	Mitsubishi	Japan
Control system	Touch screen	Mitsubishi	Japan
	Servo motor	Mitsubishi	Japan
	Signal amplifying board	XIZI	China
	Heating lamp	Taichung	China
	Switching Power Supply	Schneider	France
	Contactor	Schneider	France
	Proximity Sensor	Omron	Japan
	Frequency converter	Mitsubishi	Japan
Pneumatic system	Blow valve	PARKER	USA
	Operation valve	SMC	Japan
	T-junction	SMC	Japan
	Rotary cylinder	SMC	Japan
	Gripper cylinder	SMC	Japan

---
