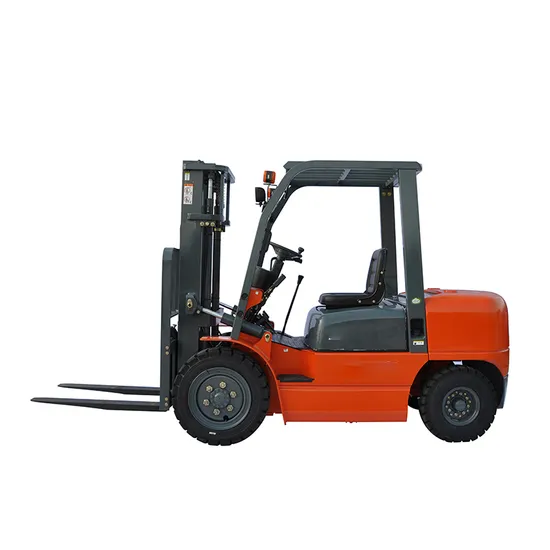

Strong Performance Hot Sale New H2000 Series Cpcd30 3ton Diesel Forklift Truck

Product Description

Product Description HELI New H2000 series CPCD30 diesel counterbalanced forklift truck 1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment hasN reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30%.
6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.
8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life. Detailed Photos

Manufacturer		HELI
Model		CPCD30
Lifting weight	kg	3000
Load center	mm	500
Power mode		Diesel
Driving mode		Seated
Lifting height (standard)	mm	3000
Mast full height (forks on the ground, mast vertical)Maximum	mm	2000
Height of fork lifting (with backrest)	mm	4030
Free lifting height	mm	150
Full height (overhead guard)	mm	2120
Minimum ground clearance (at mast)	mm	115
Distance from seat surface to overhead guard	mm	1050
Towing pin height	mm	290
Backrest height (from mast fork surface)	mm	1000
Full length (with forks/without forks)	mm	3680*2610
Wheelbase	mm	1650
Front overhang	mm	465
Rear overhang	mm	495
Full width	mm	1160
Track (front/rear)	mm	970/970
Fork adjustment range (outside forks) (maximum/minimum)	mm	1030/244
Minimum outside turning radius	mm	2270
Minimum inside turning radius	mm	35
Mast tilt angle (front/rear)	mm	6°/12°
Fork size	mm	1070*122*40
Gross weight	kg	3650
Weight distribution Full load (front/rear)	kg	5440/710
Weight distribution Unloaded (front/rear)	kg	1470/2180
Number of wheels X = Drive wheels (front/rear)		2X/2
Tire type (front/rear)		Pneumatic tire
Tire size (front/rear)		7.00-12-12PR/6.00-9-10PR
Service brakes		Hydraulic-pedal type
Parking brakes		Mechanical-Manual
