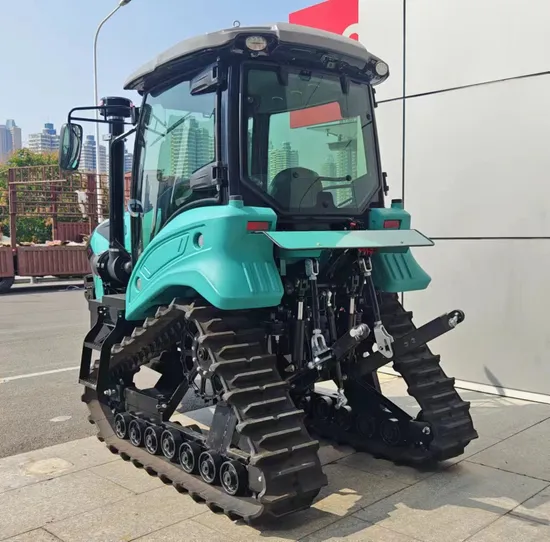

K-Bos Agricultural Wheel Farm Tractor

Product Description

Product Description
This tractor adopts triangular crawler walking, steering wheel operating, diffrential controlling of 360° spin in place, hydraulic steering lift , operating smartly and comfortably;
High chassis ground clearance 440mm, wide guage 1300mm, very good trafficability in mud field;
Commonly used three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, ridging, furrowing works etc;
The advantages are: low ground pressure, strong sag resistances protect soil effectively without damage to plow pan, high efficiency.
1.Equipped famous brand engine showing advanced capacity,low fuel consumption,high economic efficiency. 2. Streamlined appearance design, beautiful and generous. 3.Transmission Case adopt meshed shift and add the gearbox interlock device makes the operation more smoothly,reliable and easier. 4. Double action clutch with disc spring, perform steadily and easy to operate. 5. Fully hydraulic steering system greatly reduced driver's work strength. 6. Wet disc brake device, reliable brake performance. 7. Separate injection of hydraulic oil, reliable to operate. 8. The lifter with force and position adjustment, with reliable lift
Product Parameters

ITEM		PARAMETER
Product		Crawler Tractor XJ1002
Overall Dimension Length×Width×Heights ( mm ):		4100 × 1910× 1900
Weight (kg)		3150
Structure		Chassis Based
Engine	Engine Model	YTN3155-44
	Rated Power ( kw/hp )	73.5KW/100HP
	Engine Type	Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel.
	Rated Rotation Speed (r/min)	2300
	Starting Method	Electrical Start
Driving System	Drive Wheel	2 Wheel Drived
	Transmission	4×(1+1)×2 shifts
	Steering Operation Control	Wheel Steering Mechanical
	Type of Brake	Wet Disc Brake
Traveling System	Rubber Track(mm):	400x90x58
	Gauge (mm)	1300
	Theoretical Operating Speed ( km/h )	0~16.47
	Minimum Ground Clearance (mm)	550
Working Implement	Hydraulic Hitch Type	Semi-partition Hydraulic Hitch
	Rear Mounted Implements Type	Three-point Linkage
	PTO Rotating Speed (r/min)	720/1000
