High Precision Garments Sofa Industry Cloth Fabric Leather Cutting Equipment Price

Product Description

High Precision Garments Sofa Industry Cloth Fabric Leather Cutting Equipment Price Machine Introduction:
Integrated Welding Steel Constructed Table
The machine is built with a durable, stable, 6mm all-steel tube frame which significantly reduces vibration and gives the operator tight control for precise cutting.
Conveyor System
Designed for easy loading and unloading of materials, the Conveyor System provides operators a fast advance control of material and serves as a vacuum cutting surface ideal for roll materials.
Digital Servo Drive System
Brushless AC Servo Motors, guide rail, rack and pinion are integrated into the machine providing both velocity and torque with uncompromised accuracy for cutting applications.
Safety Device
Equipped with infrared automatic sensor device and four emergency stop buttons, the Safety Device provides a safe working environment.
Accurate and Stable Working Table
The cutting table is built with 7 series aviation aluminum which contains a honeycomb structure inside, sturdy, high-precision, non-deformable, stable for long-term running.
Regional Vacuum Adsorption System
The vacuum adsorption area can be selected according to the size of the materials. By using individual vacuum controls for each area, the vacuum system greatly reduces the need for masking open areas of the table.
Motion Control system
The motion control system consists of a motion controller and a LCD touch control panel. It can make the cutting process smooth, efficient, perfect. And the control panel is quite easy to operate with English interface.

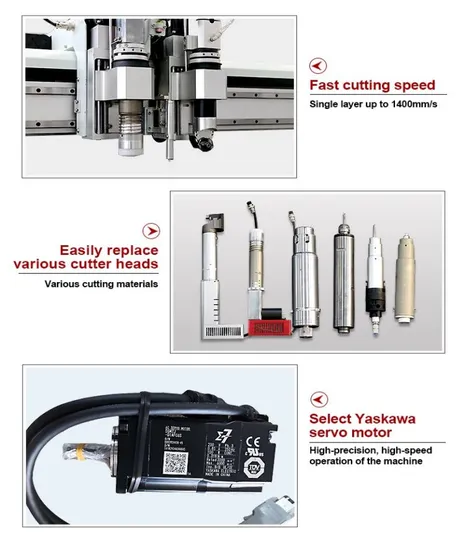

Cutting Heads
The machine can be equipped with one cutting head or multiple cutting heads. Different cutting tools can be changed and mounted on the cutting heads for different cutting needs.
Products details:
Parameters:

Model	1625/1630/1830/2030, can be customized.
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Advantages of cutting machien: 1. Envioronmental protection, no fire & smoke when cutting.
2. Nice appearance: no raw edge and yellow edge after cutting.
3. High safty factor: mechanical anti-collision device / infrared radiation can assure the worker's safty.
4. High speed cutting: 1500mm / s;
5. High accuracy cutting: error 0.1 max.;
6. performance: stable & durable.
7. Low noise.

Certification:
Company show:
Training Room:
Exhibition:
FAQ:
1. How do I choose the right machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
2. Is it easy to operate? Yes, it's very convenient. It supports multiple formats. In addition, our professional technical support personnel. At any time

3. Is the machine safe to operate? Our machines are equipped with multiple protection measures to ensure that the operator's

4. What's the guarantee, in case the machine breaks down? The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
5. How's the payment? TT,PAYPAL,Western Union(WU),and so on

---
