Spherical Tc17 Powder with 15-45 Microns/45-105 Microns/45-150 Microns

Product Description

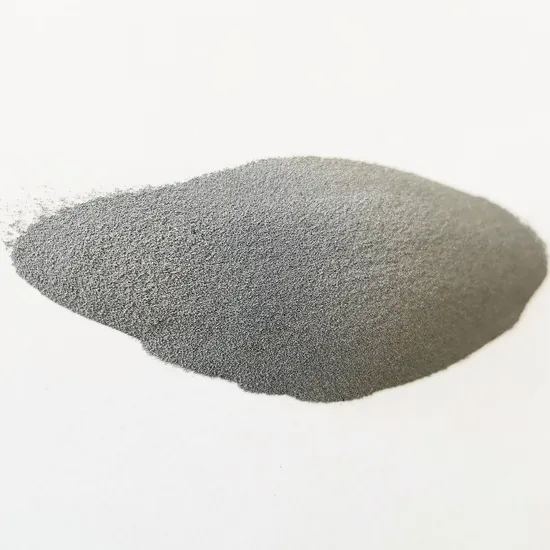

High Purity Spherical Titanium alloy Powder TC17
Product introduction
We here selling PREP producing atomizing Ti metal TC17 titanium alloy powder, which use vacuum atomized technology.The powder usually used on additive manufaturing, laser cladding ,Spraying,PM,electronic coating. etc. We have our own equipment and can supply at any time.The alloy powder we produced is adopted by technology innovation companies in Europe and North America.

Product parameters

Spherical TC17 titanium alloy powder
Chemical composition	Chemical composition (wt.%)
	Ti	Al	C	Fe	O	N	Sn	H	Zr	Cr	Mo
Tested	Bal.	4.4-5.5	0.08-0.13	0.25	0.08-0.13	0.05	1.5-2.5	0.0125	1.2-2.5	3.5-4.5	3.5-4.5
size (mesh /micron)	15-45 microns D10 (10-15 microns),D50(15-25 microns),D90(40-50 microns)45-105 microns,45-150 microns (offer customized services)
Sphericity	>95%
application	It is used in additive manufacturing, lase cladding , Spraying, Powder metallurgy, electronic coating.
Other things	Besides Titanium Powder, we also produce W,Ti,Ni,Co,Nb.

Product features

1) Made by non-contact melting process;

2) The powder has high sphericity, no hollow powder;narrow particle size distribution, good fluidity and strong density;

3) The particle size range of Titanium Alloy Powders is 20-1000 μm;

4) Effective control of powder particle size distribution;sphericity and oxygen consumption through optimized technology;

5) Inert gas two steps treatment and compensation process can control the forming degree of EIGA producing atomizing alloy powder more efficiently;

6) High purity spherical alloy powder with high sphericity, good fluidity and few non-metallic inclusions.

Applications
·New high-temperature structural materials for aerospace;
.3D Printing & Additive Manufacturing;
·Canning-HIP (Hot Isostatic Pressing);
·MIM (Metal Injection Molding);
.Spacecraft various cabins, rudder wings, engine intakes;
·Hot Spray-coating;
·Welding;
·Other common areas.

Product mechanism and equipment



The production process of PREP
A) The working speed of PREP is greatly increased, the powder sphericity has reached more than 95%, and the yield of fine powder has been significantly increased.
B) The oxygen increment of active metals such as titanium alloy is controlled within 100ppm, while the oxygen increment of metals such as high-temperature alloys can reach 50ppm.
C) The rod feeding of end surface is heated by plasma arc to melt into liquid.
D) the liquid is ejected and crushed into fine droplets by the centrifugal force of high-speed rotation of the electrode.
E) The droplets eventually form a spherical powder under the action of surface tension in the condensation process.

About us
Our company is a high-tech enterprise led by core members of the technical team. The company is mainly engaged in the design, development, production and sales of spherical metal powder, powder equipment, metal 3d printing parts, porous metal materials and titanium alloy product, widely used in additive manufacturing, laser cladding, surface coating, electronic product and other fields.

Shipping and servicing


Payment


FAQ
Q1. How about your delivery time?
A: Generally, it will take 8 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

---
