| US$7,200.00 | 1 Piece (MOQ) |

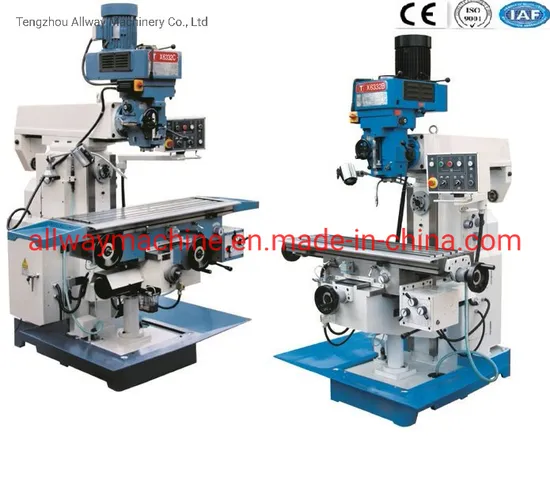

| Specification | Unit | Model XL6336 |
| Spindle taper | ISO40(VERTICAL) ISO50(HORIZONTAL) | |
| Spindle travel | mm | 140 |
| Sleeve feed | mm/r | 0.04/0.08/0.15 |
| Distance from vertical spindle to column | mm | 200-600 |
| Distance from vertical spindle to table | mm | 180-530 |
| Distance from horizontal spindle to table | mm | 0-350 |
| Distance from horizontal spindle to arm | mm | 230 |
| Spindle speed range | r/min | 63~2917/10(vertical) 60~1800/12(horizontal) |
| Table size | mm | 1250×360 |
| Table travel | mm | 1000×320×350 |
| Range of longitudinal,cross travel | mm/min | 15~370/(MAX.540) |
| Up/down speed of table | mm | 590 |
| T of table(N0./WIDTH/DISTANCE) | mm | 3/18/80 |
| Main motor | kw | 5.5(vertical)4(horizontal) |
| Motor of table power feed | kw | 0.75 |
| Up/down motor of headstock | kw | 1.1 |
| Coolant pump motor | kw | 90 |
| Speed of coolant pumps | L/min | 25 |
| Overall dimension | mm | 2220×1790×2360 |
| N.W./G.W. | kg | 2340/2540 |
| Specification | Unit | Technical parameters |
| Spindle taper | 7:24 ISO40 | |
| Spindle travel | mm | 150(vertical) |
| Sleeve feed | mm/r | 0.04/0.08/0.15(3 steps) |
| Distance from spindle to column | mm | 200-500(vertical) |
| Distance from spindle to table | mm | 155-455(vertical) |
| Distance fron spindle center to table surface | mm | 0-300(horizontal) |
| Distance from spindle center to arm | mm | 190(horizontal) |
| Spindle speed range | r/min | (20steps) 63-5817(vertical) (12 steps) 60-1350(horizontal) |
| Table size | mm | 1250×320 |
| Table travel (x/y/z) | mm | 600×300×300 |
| Range of longitudinal, cross travel | mm/min | 22-555(8 steps)810(max.) |
| Vertical up-down speed table | mm/min | 560 |
| T-slot NO./width/distance of rotary table | mm | 3/14/70 |
| Main motor | mm | 3.7(vertical)2.2(horizontal) |
| Motor for rapid device of table | w | 750 |
| Motor of lifted table | w | 750 |
| Speed of cooling pumps | L/min | 12 |
| N.W/G.W. | kg | 1500/1700 |
| Overall dimension | mm | 1700×1520×2260 |
