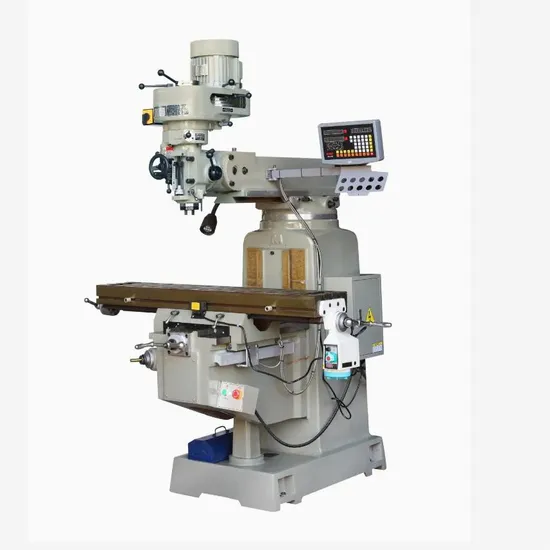

Universal Milling Machine with Enhanced R8 Spindle for Versatile Use

Product Description

Elevate your machining capabilities with the 5m Vertical Universal Turret Milling Machine. Crafted for precision and durability, this Metal Milling Machine features an NT40 Spindle, designed to tackle various tasks with remarkable efficiency.
Product Description
Mechanical characteristicCrafted from superior Meehanna cast iron, the casting of this machine offers exceptional rigidity and stability, ensuring no deformation for unparalleled reliability.The spindle boasts a precision bearing combination, delivering formidable cutting force and impressive accuracy, making it a powerhouse in its class.Experience effortless operation with the uniquely designed inverted hanging end milling head. It offers remarkable precision and ease of use, complete with a simple braking mechanism. Customers have the option to select additional specialized functions tailored to their needs.Built for endurance, the three-axis screw nuts are composed of advanced phosphorus meter copper, providing excellent wear resistance and extending the service life significantly.The XY shaft slide benefits from high-frequency ripening treatment, offering enhanced tail wear resistance and a prolonged lifecycle, ensuring long-term performance.The integrated lubrication system guarantees the slide's smooth operation, enhancing overall machine functionality.
Product Parameters
1.Milling Machine Rotation Speed
The rotation speed of the milling machine is a pivotal factor in influencing both processing efficiency and cutting force magnitude. Higher speeds equate to stronger cutting capability, and they also refine the surface quality of parts while reducing residual surface stress.
Milling Machine Cutting Speed The cutting speed is crucial for determining processing velocity and quality. Incorrect speeds, whether too high or too low, yield subpar results. Optimal cutting speeds should be determined based on material hardness, cutter material, and machine type. Milling Machine Processing Accuracy As a key performance indicator, the machining precision of the milling machine affects both machining and part quality stability. Influencing factors include cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine tool errors. Milling Machine Precision Stability Precision stability measures the consistency of accuracy during operation. Poor stability results in increased errors, impacting quality. Factors such as initial machine tool errors, thermal deformation, and tool wear affect this stability.

Product Name
Product Name	Milling machine
Product model	5M
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	1000MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around 45°
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1800*2500MM
	Approximate machine weight	1680kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, NT40 chuck/Z axis automatic lifting device	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
