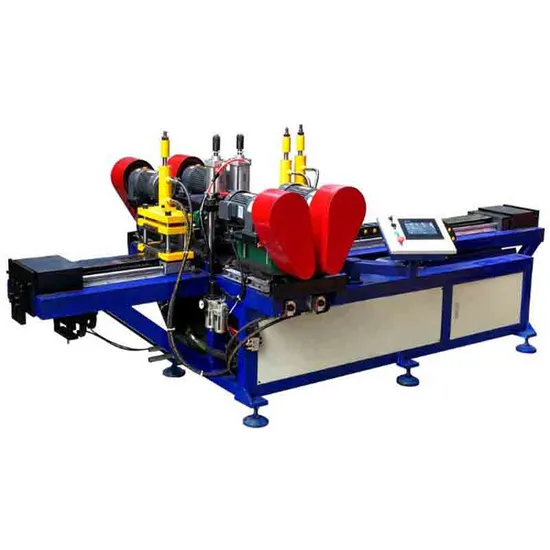

Full Automatic Drilling Machine Angle Steel Punching Machine

Product Description

1. Touch Screen settings, CNC control system, precise servo motor positioning, module sto-
rage memory function.2. Structure: Steel plate welded structure3. Mould replacement: change the dies easily without adjusting the dies to reduce mould da-
mage rate , Skilled workers can changethe mould within 10 minutes.4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole
punching; (4). none- Isometric holepunching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal
two sides5. Hydraulic ,pneumatic and Servo System.6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with e-
x
tremely low frequency oil pump motor,effectively reduced noise, increased motor efficiency and service duration.7. double punching heads machine can punch hole with two hydraulic cylinders, or only one
cylinder punch separately

Device model	ZKJ-30	ZKJ-40	ZKJ-50
Maximum round tube specification	Ф50(copper aluminum steel)	Ф80(copper aluminum steel)	Ф100(copper aluminum steel)
Maximum square tube specification	50×50	80×80	100×100
Maximum processing wall thickness	4mm(SS)	8mm(SS)	10mm(SS)
Maximum processing wall thickness	4mm(copper aluminum steel)	8mm(copper aluminum steel)	10mm(copper aluminum steel)
Punching specifications	Ф3.5~Ф10mm	Ф3.5~Ф30mm	Ф3.5~Ф40mm
Maximum length of one feeding	1500mm	1500mm	1500mm
Number of holes processed continuously	No limited	No limited	No limited
Maximum workpiece length	6000mm	6000mm	6000mm
Processing efficiency	6-8 S/hole	8-10 S/hole	10-15 S/hole
Feeding speed	800mm/S	800mm/S	800mm/S

---
