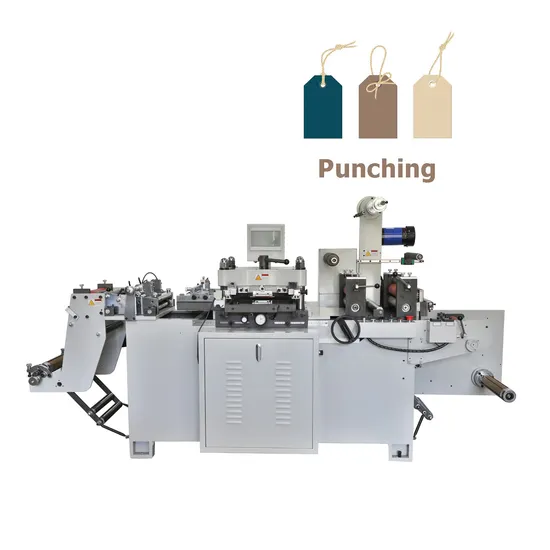

Self Sticker Label Paper Punching Die Cutting Machine

Product Description

Feature: JM320D High speed die cutting machine is controlled by servo motors, adopts accurate flat bed die-cutting system with max speed of 350repeats per minute. The standard machine consists of Unwinder , web guide sensor ,color mark sensor ,lamination ,flat bed die cutting unit ,waste collection ,sheeter and rewinder . It's the ideal finishing machine for die-cutting all kind of adhesive labels and hologram labels. This machine can be upgrade with Hot stamping ,punching ,IML function with conveyor . Product Made from Machine:

Teachnical Specifications:

Max Web Width	320mm
Max Unwinding Dia	500mm
Max Rewinding Dia	500mm
Max Die cutting Speed	350rpt/min
Die cutting Accuracy	±0.10
Voltage	1P 220V 50HZ
Positioning Precission	7.5kw
Overall Diameter(L×W×H)	2700mm×1000mm×1500mm
Weight	1700KG

Please note the machine speed may be limit by other units.
Detail Configuration:

Main Electrical Part	Brand
PLC	Panasonic (Japan )
Touch Screen	Kunlun(China)
Web Guiding Sensor	Hengwang(China)
Electric components	Schneider ( France )
Transducer	Holip(Denmark)
Power Switch	Taiwan China

Machine Detailed Pic for Reference:
1. Web guide sensor 2.Automatic Paperless stop

3. Pull by Servo controlled

4. Stable die cutting pressure 5.reversible cutting board(Patented design)
6. Sheeter device 7.Punching

8.Lamination device

About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:

---
