China Alva Wood Board Drying Equipment, Fully Automatic Operation Plywood Dryer, Veneer Dryer

Product Description

Alva corporate purpose
Create value for customers, create benefits for partners, create future for employees, and create wealth for society Quality Policy
Excellent quality, perfect service, continuous improvement, meeting customer requirements
Chairman of Alva's business philosophy:
To quote William Deming. Product quality is produced, not tested
Product quality is not shown in words, pictures, or videos, but is achieved step by step through continuous practice, innovation and reform. Every product of Alva is through technical research and development, production practice, and quality checks, and finally creates the most cost-effective products for our customers. Believe in China Alva, believe in your own choice. Alva never disappoints any client. thanks.
Product brief introduction

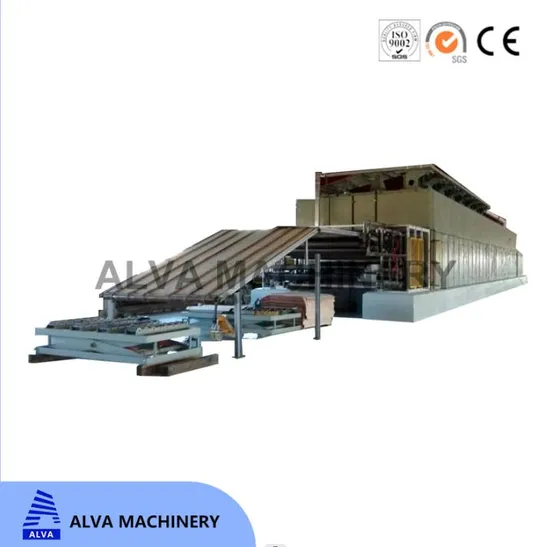

Drum veneer dryer is the main equipment for plywood
Production.It is suitable for cutting before drying,drying after cutting,or connecting with shearing machine and plate collecting machine for assembly line production process, especially suitable for panel drying.
Features: This machine adopts a number ofhigh-tech and
Advanced electrical control technology,with high efficiency,
Energy saving, good drying quality and other characteristics. This machine adopts the way of heating the veneer panel with
Transverse circulation and vertical air injection to dry the veneer.
Product parameter list

Model

ALVA1333-7+1

ALVA1333-8+1

ALVA1333-9+1

ALVA1333-10+1

ALVA1333-11+1

ALVA1333-12+2

ALVA1333-13+2

ALVA1333-14+2

ALVA1333-15+2

ALVA1333-16+2

ALVA1333-17+2

ALVA1333-18+2

Details

Working width/mm

2800

2800

2800

2800

2800

2800

2800

2800

2800

2800

2800

2800

Heating room length/mm

14000

16000

18000

20000

22000

24000

26000

28000

30000

32000

34000

36000

Cooling room length/mm

2000

2000

2000

2000

2000

4000

4000

4000

4000

4000

4000

4000

Total power/kw

98.2

109.2

124.7

135.7

152.7

170.7

181.7

203.2

214.2

225.2

236.2

247.2

Transmission motor power/kw

4*3

4*3

5.5*3

5.5*3

7.5*3

7.5*3

7.5*3

11*3

11*3

11*3

11*3

11*3

Heating fan motor power/kw

11*7

11*8

11*9

11*10

11*11

11*12

11*13

11*14

11*15

11*16

11*17

11*18

Cooling fan motor power/kw

4+3

4+3

4+3

4+3

4+3

4*2+3*2

4*2+3*2

4*2+3*2

4*2+3*2

4*2+3*2

4*2+3*2

4*2+3*2

Output motor power/kw

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

Veneer delivery speed/m/min.

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

1.5~15

Steam consumption/kg/h

2300

2600

3000

3300

3600

4000

4300

4600

5000

5300

5600

6000

Steam pressure/MPa

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

0.6~1.2

Steam drying temperature/ºC

130~160

130~160

130~160

130~160

130~160

130~160

130~160

130~160

130~160

130~160

130~160

130~160

Thermal oil boiler/KCal

1380000

1560000

1800000

1980000

2160000

2400000

2580000

2760000

3000000

3180000

3360000

3600000

Oil drying temperature/ºC

160~190

160~190

160~190

160~190

160~190

160~190

160~190

160~190

160~190

160~190

160~190

160~190

Veneer density/kg/m3

~590

~590

~590

~590

~590

~590

~590

~590

~590

~590

~590

~590

Veneer thickness/mm

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

1.5~4.5

Initial moisture content/%

65

65

65

65

65

65

65

65

65

65

65

65

Final moisture content/%

10±2

10±2

10±2

10±2

10±2

10±2

10±2

10±2

10±2

10±2

10±2

10±2

Drying capacity/m3/h

~2.5

~2.9

~3.2

~3.5

~3.9

~4.3

~4.7

~5.1

~5.5

~6

~6.5

~7

Roller center distance/mm

333

333

333

333

333

333

333

333

333

333

333

333

Dimensions(L*W*H)/mm

32500*

34500*

36500*

38500*

40500*

45700*

47700*

49700*

51700*

53700*

55700*

57700*

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

5150*4150

Weight/kg

57000

63000

69000

75000

81000

90000

97000

104000

111000

118000

125000

132000

Containers quantity

40HQ*2+

40HQ*3

40HQ*3

40HQ*3+

40HQ*4

40HQ*4+

40HQ*5

40HQ*5+

40HQ*5+

40HQ*6

40HQ*6+

40HQ*6+

20GP*1

20GP*1

20GP*1

20GP*1

20GP*1

20GP*1

20GP*1

Product Advantage:
1).One machine multi-purpose, widely used
2).The product quality is good, the dehydration color is good, the internal quality is stable
3).Drying efficiency, drying time is short, single drying quantity is large
4).Long storage period, improve the qualified rate of products, reduce the rate of defective products
Why Choose Us:
lasering your logo on products and designing logo is free Inspect the machine before leaving the factory Oversea install and debug the equipment Train the first-line operator 24 hours online service Provide the VIDEO with install and debug the equipment Provide technical exchanging Delivery time within 30days No else charge MOQ≥1 Provide products quotation Provide Packaging customization service SupportWechat/Email/whatsapp/ We specializein this field for 25 years Excellent after-sale system Supporting visits to factory
FAQ:
Q1:Can you customize products for clients?
A1: Yes, we can customize and produce woodworking machinery according to customers' requirements or drawings.
Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.
Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.
Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.

---
