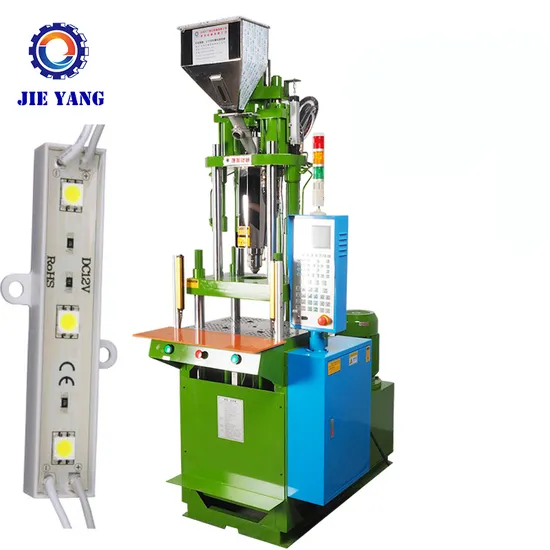

Injection Molding Machine Equipment for LED Christmas Module Lamp Light

US$6,800.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JY-450ST
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV/Bur
Product Name
Injection Machine for LED Christima Module
Screw Diameter
34mm
Injection Pressure
996kg/Cm3
Injection Weight
106g
Clamping Force
45tons
Distance Between Tie Bere
410X250mm
Opening Stroke
190mm
Ejector Force
2.4tons
Ejection Stroke
35mm
Pump Motor Power
5.5kw/7.5HP
Material Application
PVC,TPE,PE,ABS,PP,PS,PA,PC,TPU,
Language
Can Be Customized
Mold Logo
Can Be Designed
Machine Color
Can Be Customized
Spare Parts
Free Within Warranty
Transport Package
Plywood Case Packing
Specification
1.7x1.2x3.0m
Trademark
Jieyang
Origin
Dongguan, China
HS Code
8477209000
Production Capacity
200pieces/Month

Product Description

Injection molding machine equipment for led christmas module lamp light
Application :
MODEL UNIT JY-450ST
Injection Unit Screw Diameter mm 30 32 34
Injection Pressure kg/cm2 1171 996 820
Max.Shot Weight(PS) g 74 84 106
Injection Rate mm 115
Clamping Unit Clamping Force Tons 45
Plate Size mm 580x430
Distance Between Tie Bere mm 410x250
Min.Mold Height mm 220/70
Opening Stroke mm 200
Enjection Force Tons 1.76
Enjection Stroke mm 35
Power Unit Max.Hydaulic Pressure kg/cm2 140
Pump Motor Power KW/HP 5.5/7.5HP
Total Weight KW 9
Other Machine Weight Tons 2.4
Machine Dimensions(LxWxH) m 1.7x1.2x3.0
Shipping Weight Tons 2.7
Shipping Measurements(LxWxH) m 1.92x1.3x2.3

Services Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company
Are you interested in visiting our factory to know more details about plastic injection machine ?
Please scan the QR code of following picture and see our factory and office 360° in Virtual .
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
