Sdodm 35 Ton Horizontal Cement Silo/Storage Tank/Cement Silo Price

Product Description

SDODM 35 ton Horizontal Cement Silo/Storage Tank/Cement Silo Price
Patent No. ZL201420493942.3
CE Certificate No. EC.1282.0E140523.SDMQS69

Introduction

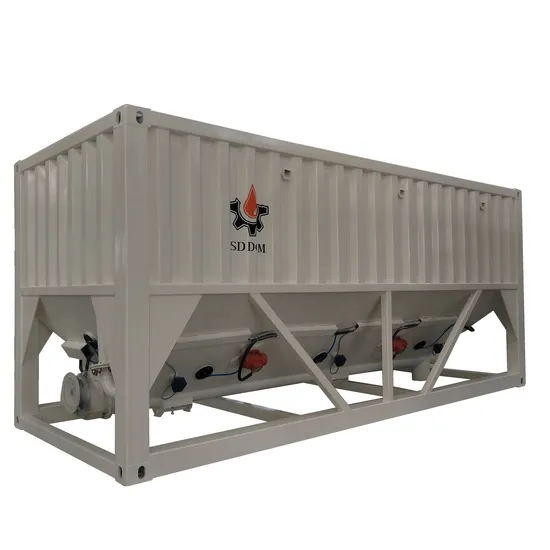

The cement silo is delivered complete with cement discharge,screw conveyor for transport of cement at the bottom of the silo,cement injection,grids for cement inlet,top hatches,electric external motor vibrators,self cleaning dust filter,standard silo equipment,lifting devices for easy transportationand control unit.Container silo is same size with 40 feet container. It is in fully welded construction.Complete silo system assembled on a common flat rack hook container.Alternatively the silo can be delivered mounted on a bogie trailer or a flat rack trailer.Designed for easy flowing materials such as Portland cement with a bulk density of 1.13 tons per cbm.

Features	Steel material , anti-rust and anti-corrosion, waterproof and moisture-proof. Long working service life.
	No need of foundation and easy to move.
	High reliable working performance.
	Leading professional designer and manufacturer.
	We accept customized order, can design and manufacture according to customer's special requirement.

Parameter

Type		Container Silo
Material		Carbon Steel, Stainless Steel
Capacity		27m3 /35 ton
Weight		8.4t
Dimension		12192*2438*2591mm
Shipping		Frame
Main parts of Container Silo
Name of Part	Item		Features
Vibrating Bin Aerator	Qty		24units
Dust Collector	Cover		Stainless
	Type		Air jet type
Pressure Relief Valve	Cover		Stainless
	Positive pressure		280 to 1000mm H2o
	Negative pressure		-20 to -120 mmH2o
Air compressor	Qty		1 unit
	Power		3kw
Rotating Level Indicator	Qty		12 units
Screw Conveyor	Diameter		273mm
	Power		111030mm
	Length		5090mm
	Capacity		45t/h
Control Cabinet	Electric Parts		SIEMENS
	Work Way		Auto
Remark: All the silos can be customized according to your requirements.
