Digital Fuel Flowmeter Water Flow Sensor Ultrasonic Turbine Flowmeter Liquid Diesel Oil Vortex Gear Coriolis Magnetic Electromagnetic Flow Meter

Product Description

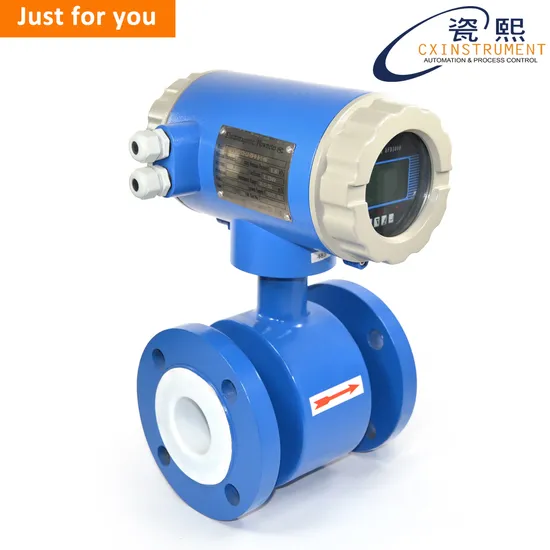

Product Description This Technology of magnetic Electromagnetic Flowmeter has a number of advantages when it comes to liquid flow measurement. The sensors are generally inserted in line into the pipes' diameter, and are therefore designed such that they do not disturb or restrict the flow of the medium under measurement. As the sensors are not directly immersed in the liquid-there are no moving parts-there are no wear and tear concerns.
The method of magnetic electromagnetic flowmeter measures the volume flow, which means the measurement is insensitive to changes in effects such as fluid density, temperature, pressure, and viscosity. Once the electromagnetic water flow sensor measurement transmitter meters is calibrated with water, it can be used to measure the other types of conductive fluid-with no additional correction. This is a significant advantage that other types of flow meters don't have.
what's the technical parameters of magnetic electromagnetic flowmeter?

Production Name	magnetic electromagnetic flowmeter
Medium	water;wastewater;Mud and varioue kinds of conductivity liquid
Diameter	DN10~DN2000mm
Accuracy	+/-0.5%
Temperature	<80ºC(rubber); <180ºC(PTFE)
Pressure	4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)
Flow speed	0.3~10m/s
Requirement of pipeline	Upstream ≥5DN;Downstream≤3DN
Electrode	Stainless steel 316L(standard);Titanium;Tantalum;Hastelloy
Lining	PTFE;Rubber
Connection	Flange;thrad;clamp on
Body material	Cast steel ;stainless steel
Power supply	220V;24V;Battery
Output	Pulse;4~20mA;HART;RS485;MODBUS;GPRS
Communication	HART;RS485;MODBUS
Explosion proof	Customized
Protection	IP65 or IP68
Environment	Environment:-20~60ºC
Power	<20W

Product Show [Installation]
1.Installation location
Avoid the magnetic objects and equipment with stong electromagnetoc field; should installa the flow meter at ventilated location; Avoid the location wherer ambient temperature above 50ºC and relative humidity above 90%; The water flowmeter should be installaed at somewhere spacious; The DH1000 series Digital Electromagnetic Water Flow Meter with RS485 Signal should be installaed behind pump and the value should installa at downstream. 2.Installa the flow sensor
Must to ensure the pipeline is fulled and without bubbles to keep the high accuracy; The flow direction shoudl keep with sign on the body of flowmeter; Ensure the double electrodes keep Horizontal; If the medium is mixed by liquid and solid,Pls installa it at vertical to extend the working life of lining; If the environment with shocked pls installa the bracket at both front and behind; If the medium is pollution liquid,should installa the flow meter at bypass pipe and don't interrupted when you on service; 3.Requirement of Straight pipe
The straight of pipe at inlet must more than 10×DN,Suggest 15DN;at outlet,the straight pipe at least 5×DN; If at the upstearm of flowmeter,there are values,elbow,the straight must need 15×DN; Pls installa the shut-off value at both front and behind of flow meter; 4.Installation advance
The installation location for you reference Company Profile Shanghai Cixi Instrument Co., Ltd. Cixi flowmeter Co., Ltd. was established in 1986 and we have especially set up Shanghai Cixi Instrument Co. Ltd in order to handle the deals of Export and obtained the License of Export and Import in 2008.Since 1986, Cixi flow meter Co. Ltd has been dedicating itself to research and manufacture of various kinds of flow meters and level meters. With sophisticated experience in technology and management, we has made a name for itself as an excellent manufacturer of various kinds of flow meters and level meters.Thanks to outstanding performance of products, CIXI Flow meters are being applied in more and more fields where there's liquid to measure. CIXI Flow meters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flow meter are kind of product with super performance and reasonable price.Our target is to serve our customers efficiently and innovatively in order to save their money and time. Any requirements from you will be responded in 24 hours.
FAQ Q1. Sample Policy
A: Sample available if we have products in stock, but the customers have to pay the sample cost and the courier cost. We can reduce sample cost from further order according to your quantity.
Q2. Terms of Packing
A: We can pack as you want,like color box,5-layer brown box.
Q3. Terms of Payment
A: T/T (50% as deposit, and 50% before shipping), Made In China Trade assurance (same safe as Paypal).Pictures of the products and packages will be showed to you before shipping.
Q4. Terms of Delivery
A: EXW, FOB, CFR, CIF, DDP, DDU.
Q5. Delivery time
A: Generally, it will take 30 to 50 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
Q6. OEM&ODM Service
A: ODM&OEM service accepted, including selections on size, materials, design, packing method, etc., according to your requirements. Logo and brand customization also are available.

Q7. Quality under Control
A: We have 100% test before delivery.Ou

---
