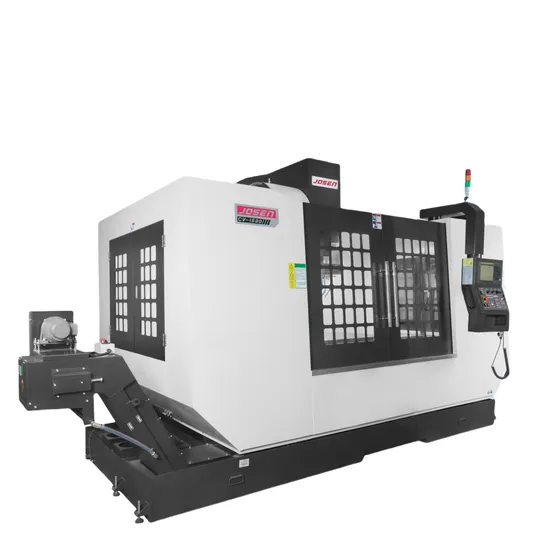

Monthly Deals High Precision with 3 Axis Milling Machine and Metal Machining Center (CV1580) Vertical CNC Milling Machine price Product Description
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller
| 10 | Chip pan and water tank
|
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection system
|
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions
|
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Work light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
9 | Portable chip blowing air gun |
18 | 24-blade arm type tool magazine |
| Description / Machine Model | Unit | CV-1580 |
| Itinerary |
| X-axis travel | mm | 1520 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 700 |
| Distance from nose of spindle to table surface | mm | 155-855 |
| Workbench |
| Working table size (X*Y) | mm | 1650*800 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*125 |
| Max. loading capacity of working table | KG | 1400 |
| Spindle |
| Spindle motor (continuous/30 minutes) | kw | 15/18.5 |
| Spindle speed | rpm | 10-8000 |
| Spindle inner taper bore | | BT50 |
| Three axis | | |
| X/Y/Z axis motors | kw | 3/3/3 |
| Feed rate |
| Rapid feed rate (X/Y/Z) | mm/min | 20000/20000/20000 |
| Fastest cutting feed rate | mm/min | 1-10,000 |
| Oil pressure system |
| Water tank capacity | liter | 350 |
| Pneumatic pressure requirements | kg/cm2 | 6 |
| Electricity |
| Power Specifications | | AC380±10%,3 phase,60Hz/50Hz |
| Electricity demand | KVA | 30 |
| Other |
| Machine weight | T | 9 |
