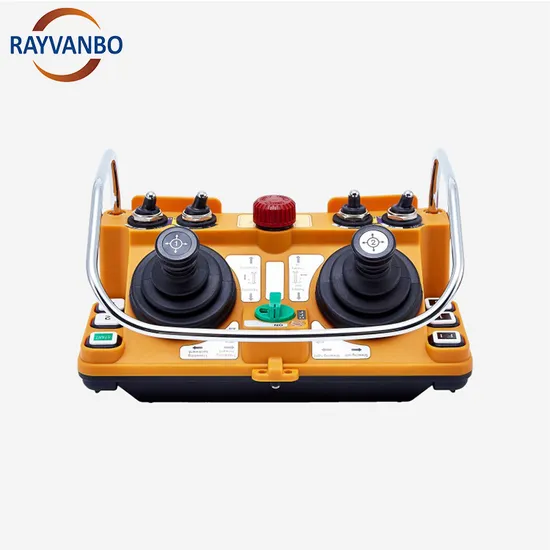

Rayvanbo F24-60 Joystick Proportional Truck Crane Radio Industrial Wireless Remote Control Waterproof

Product Description

Product Description Product Specifications : 12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons
F24-60 Function Characteristic :
1. 6 function buttons, 2 three-position and 2 two-position rotating switch, stop, rotary start switch .
2. 2 pcs five-step joysticks with 10 million times of mechanical life and pure proportion.
3. Control contact is up to 40.
4. With battery voltage warning device, the power supply is cut off during low power.
5. Safety switch key is to prevent from unauthorized user.
6. Program the button function by computer software.
( The program software /data line need to buy extra )
7. The spare buttons can be programmed to normal, toggle, interlock or start, etc.
( The program software /data line need to buy extra )
8. Start button can be program to be start, normal, toggle function etc.
( The program software /data line need to buy extra )9. Installed with proportional module for analog signal output (optional)
( The program software /data line need to buy extra )
F24-60 Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.5M cable connector
1 pieces dust bag
1 piece english manual
Any question will be sincerely and professionally handled! Waiting for your inquiry!
Product Advantages
Packaging & Shipping
Product Parameters

F24-60 Transmitter Parameters
Material		Glass-Fiber PA
Enclosure protection class		IP65
Frequency range		VHF: 310-331MHz (UHF: 425-446MHz is optional)
Transmitter power		≤10dBm
Transmitter power supply		2 AA alkaline batteries (not included)
Safety code		32 bits (4.3billion)
Temperature range		-40ºC-+85ºC
Control distance		Approx 100m(200 meters is customized)
Size		210x152x128mm
Weight		980g (without battery)

F24-60 Receiver Parameters
Material		Glass-Fiber PA
Enclosure protection class		IP65
Frequency range		VHF: 310-331MHz; UHF: 425-446MHz
Receiver sensitivity		-110dBm
Receiver power supply		18~65V AC/DC; 65~440V AC/DC (optional)
Safety code		32 bits (4.3billion)
Temperature range		-40ºC-+85ºC
Output contactor capacity		8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Cable length		1.65m (Other length can be customized)
Size		320x253x107mm
Weight		2020g

About Us
FAQ Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
