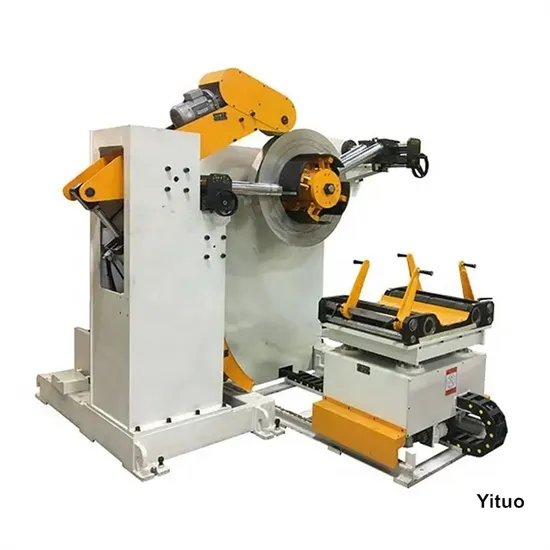

High Performance 3 in 1 Decoiler Straightener Feeder Machine for Home Appliances Stamping

Product Description

Product Description
Features of Uncoiled, Straighter and Feeder 3 in 1
1. Suitable all kinds of metal sheet straightening and feeding
2.Suitable for metal parts,electron,electrical appliance, toy and auto parts continuous pressing production,straightening and feeding
3. Servo motor of this machine,electrical box and ome other parts are from Japan, with less malfunction and long using time.
4. Chrome plate,high precision,more durable.
5. Input feeding length, easy operation, safe and high stability. Straightening capacity diagram (uncoiled, straightened and feeder,3 in 1) 1.This diagram is suitable for condition,which material stretch intensity is 40kgf/ mm.
2. Straightening capacity may be change because of different actual condition.
3. About coil outer diameter,material widthand deciliter standard load weight,pleaserefer to deciliter attachment diagram of this catalogue
4. About particular specification manufacturing, please contact us.

Model	NCMF-300	NCMF-400	NCMF-500	NCMF-600
Ltem
Material thickness		0.4-2.5(Straighteningrollerl49x5up/5down)
Material width	mm	300	400	500	600
Coil Inner diameter	mm	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530
Coilouter diameter	mm	Ф1400	Ф1400	Ф1400	Ф1400
Coil weight	kg	3000	3000	5000	5000
Decoiler power	HP	2.2	2.2	3.7	3.7
Straightening power	kw	2	2	3.5	3.5
Expansion style		Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion
Size	m	4.5x1.5x2.3	4.5x1.7x2.3	4.5x1.9x2.3	4.5x2.0x2.3
Weight	kg	~2200	~2400	~2800	~3000

	Model	NCGK-500	NCGK-800	NCGK-1000	NCGK-1300
Ltem
Material thickness		1.5-8.0(Straighteningrollerl84x5up/5down)
Material width	mm	500	800	1000	1300
Coil Inner diameter	mm	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530
Coilouter diameter	mm	Ф1400	Ф1400	Ф1400	Ф1400
Coil weight	kg	5000	5000	7000	7000
Decoiler power	HP	2.2	2.2	3.7	3.7
Straightening power	kw	5.5	5.5	7.5	11
Expansion style		Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion

Item	Model	NCBF-400	NCBF-500	NCBF-600	NCBF-700	NCBF-800	NCBF-1000
Material thickness		0.5-6.0(Straighteningrollerl68x4up/3down)
Material width	mm	400	500	600	700	800	1000
Coil Inner diameter	mm	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530
Coilouter diameter	mm	Ф1500	Ф1500	Ф1500	Ф1500	Ф1500	Ф1500
Coil weight	kg	2000	3000	5000	5000	5000	5000
Decoiler power	HP	2.2	2.2	3.7	3.7	5.5	5.5
Straightening power	kw	4.4	4.4	5.5	5.5	5.5	7.5
Expansion style		Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion
Size	m	4.5x1.9x1.8	4.5x2.0x1.8	4.5x2.1x1.8	4.5x2.3x1.8	4.5x2.5x1.8	4.5x2.8x1.8
Weight	kg	~3200	~3900	~4800	~5100	~5600	~6200

Certifications
Company Profile
Packaging & Shipping
Packing
Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory which has been producing stamping automation machines for more than 20 years.
Q: What's the delivery time?
A: The standard machine is 25 to 30 working days after payment. For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory,we will confirm the delivery time based on the specific project itself.
Q: Do you receive OEM or ODM?
A: Yes, we warmly welcome customers to do OEM and ODM in our factory.
Q:What's warranty time of your machine?
A:Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements.
Q:What after-sales service does YITUO provide?
A:For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it.
For the compact coil feed machine and complete metal stamping line,YITUO can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site.
Q: What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Pipe diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per month

---
