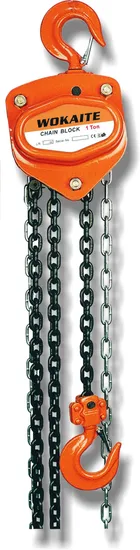

3 Ton Lifting Manual Equipment Hand Chain Block with Pulley Hoist

US$30.00-700.00 1 Piece (MOQ)

Basic Info.

Model NO.

HSZ-V

Application

Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane

Type

Chain Hoist

Sling Type

Chain

Lift Speed

<2m/min

Maximum Lifting Height

Chain Falls

Certification

CE, ISO9001:2000

Condition

New

Color

Orange

Structure

Hook Crane

Type of Work

Middle-Level

Suspension Types

Hook,Manual Trolley,

Rated Capacity

500kgs to 20t

Delivery Day

7-30 Days

Transport Package

Wood Carton

Specification

0.5 ton-20ton

Trademark

WOKAITE

Origin

Zhejiang China

HS Code

8425110000

Production Capacity

1000sets/Month

Packaging & Delivery

Package Size

35.00cm * 22.00cm * 26.00cm

Package Gross Weight

32.000kg

Product Description

Compact and light Our best and strongest designed,all-steel manual chain hoist.
Bearing mechanism to increase mechanical effciency.
Special Hooks Drop-forged top and bottom hooks are specially designed for slow
Bending to warn excessive overload.
Rust protection Durable powder coat paint.
Safety brake Asbestos-free brake discs.
Load chain sprocket made of alloy steel with precision machining and heat treatment.
Double pawts Double pawt with springs provide redundancy for reliable operation
of brake mechanism according CE-regulations.

HSZ-V Series Chain Hoist Specification

Model		HSZ-0.5	HSZ-1	HSZ-1.5	HSZ-2	HSZ-3	HSZ-5	HSZ-10	HSZ-20
Capacity	tons	0.5	1	1.5	2	3	5	10	20
Standard lift	m	2.5	2.5	2.5	3	3	3	3	3
Running test load	KN	6.1	12.3	18.4	24.5	36.8	61.1	125	250
Effort required	N	200	320	360	365	385	435	435	435×2
to lift rated load	N	200	320	360	365	385	435	435	435×2
Strands of load chain		1	1	1	1	2	2	4	8
Load chain diameter	mm	6	6	8	8	8	10	10	10
Net weight	kg	8.4	10.5	15.5	18.5	21.2	41.8	81.7	173
Packing measurement	cm	22×15×19.5	23×18×19.5	28×21×24	28×21×24	32×21×26	40×21×31	50×41×21	64×38×64
Extra weight per	kg	1.7	1.7	2.3	2.3	3.7	5.6	9.7	19.4
metre of extra lift	kg	1.7	1.7	2.3	2.3	3.7	5.6	9.7	19.4
