Cr600 Diamond Multi-Wire Saw Cutting Machine for Arc Shape Magnets

Product Description

Product Description

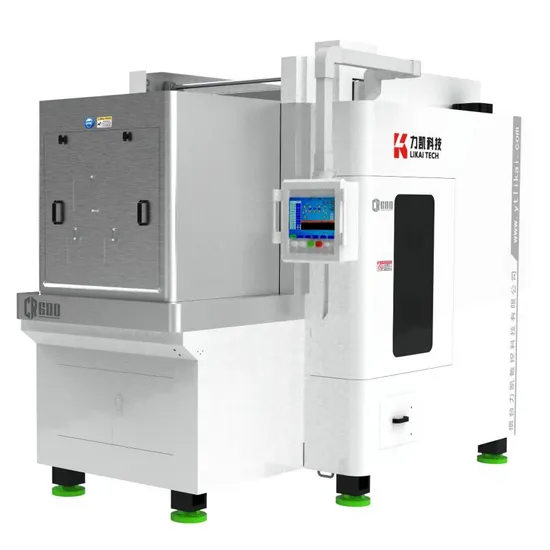

CR600 Multi-wire Saw

CR600 Multi-wire Saw is designed to meet the cutting demands of arc shape in the field of rare earth permanent magnet. The double-station design with narrow material plates can meet customers' requirements on capacity, at the same time significantly improve cutting accuracy.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Optimized Pulley Design
8 pulleys design can reduce wire breakage rate and achieve convenient wire winding.
>Stable Wire Web
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire web shaking.
>Save Labor and Time
The roller auxiliary disassembly bracket can effectively reduce the labor intensity and disassembly time.
>Easy Operation
The cutting room is equipped with electric lifting structure and open on 3 sides for easier operation and maintenance.
>Advanced Control System
Arc compensation function and wire break memory system.
Product Parameters

Detail	Parameter
Model	CR600
Maximum work size	70mm*600mm*120mm×2
Workbench qty	2
Roller out diameter *Workable width	(φ145±10mm)*610mm*4
Wire diameter	φ0.12mm-φ0.20mm
Wire Spool Storage	40km(φ0.25mm)
Maximum running speed	1200m/min
Travel of workbench lifting	180mm
Travel of workbench translation	30mm
Cutting method	Vertically upward movement
Cutting feed speed	0.1-99.9mm/min
Cutting Fluid	Water--based cutting fluid or cutting Oil
Fluid Storage	800L
Fluid flow rate	200L/min
Power Supply	Three-phase 380V 50Hz
Rated power	37kw
Air supply	Adopting water-based cutting fluid, the air pressure is more than 0.4MPa.
SizeL*W*H	3300mm*2100mm*2800mm
Weight	6500Kg
