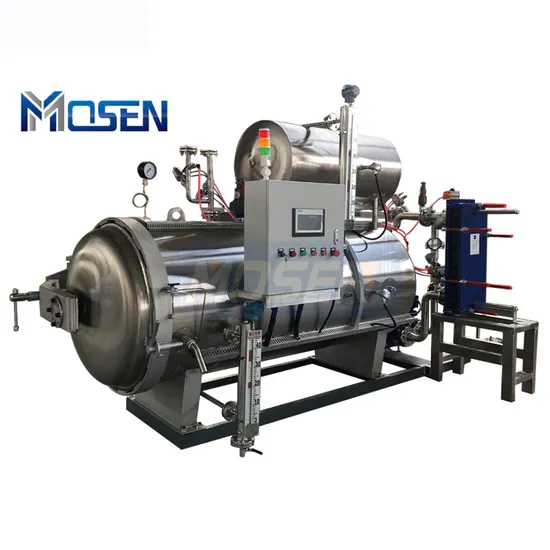

Industrial Steam Canned Food Autoclave Water Spray Retort Machine Cans

Product Description

Product Description
Industrial Steam Canned Food Autoclave Water Spray Retort Machine Cans
Shandong Mosen Machinery Co. ltd company specializes in Food Sterilizer Retort Machine Autoclave with more than 15 years of experience. We could customize according to your design.
1.Cooling is accomplished with a plate and frame heat exchanger. Water used for sterilization in steam water spray retorts is ported through the heat exchanger with a cooling source on the other side of the heat exchanger. This design allows for sterile water to contact the product, separating cooling water with the heat exchanger. Sterile cooling eliminates the need for any additional chlorine in the batch sterilization process.
2. The Water Spray process is also an overpressure process, like water immersion, except that the product is exposed to the influence of the overpressure air. It is similar to the Saturated Steam process in that steam is the driving force for reaching the center of the load. But, the Water Spray process is different from Saturated Steam in that air can be introduced into the vessel during sterilization. Overpressure is provided by introducing air (or steam) into the retort. To overcome the insulating effects of the air, the spray nozzles vaporize the steam and mix the steam with the air.
Product Parameters

MODE	Inner Diameter	Length	Capacity	Thickness	MAX .TEMP	MAX.PRE	VOLTAGE
DN1010.B	1000MM	1000MM	1.05m³	4MM	145ºC	0.35MPA	380V
DN1020.B	1000MM	2000MM	1.8m³	4MM	145ºC	0.35MPA	380V
DN1220.B	1200MM	2000MM	2.65m³	5MM	145ºC	0.35MPA	380V
DN1230.B	1200MM	3000MM	3.74m³	5MM	145ºC	0.35MPA	380V
DN1240.B	1200MM	4000MM	4.06m³	5MM	145ºC	0.35MPA	380V
DN1340.B	1300MM	4000MM	5.62m³	5MM	145ºC	0.35MPA	380V

Production Application
1. Water spray retort is Widely used in meat, eggs, seafood, fresh corn, peanuts, wild vegetables, bean products, aquatic products, canned products, packaging bags, and other food and packaging high-temperature sterilization. A wide range of applications, individuals, large, small, and medium-sized enterprises can be used and can meet production needs.
2. Packaging Container: PP bottles, HDPE bottles
Glass Container: glass jar, glass can
Metal Containers: tin cans
Aluminum cans plastic containers
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag, and so on
Water spray retort is adapted to food and beverages in glass bottles, tin cans, soft packages, plastic bottles, etc.
Our Advantages

working principle
Why Choose Us
Shandong Mosen Machinery Co., Ltd was established in 2004. It is a national D1, and D2 pressure vessel manufacturer with integrated design, manufacturing, research, and development in northern China. Below advantages:
1 . The company's food sterilization machine, jacket cooker, etc. Steam cooking equipment-related products and composite autoclave, rubber vulcanization autoclave.
2 . have passed ISO/ASME/DOSG & CE qualification certification and the products have a wide range of customers worldwide. The company's equipment production adopts advanced automatic welding, testing, and installation equipment.
3 . has a production and R&D team of more than 200 people, ensuring that every product in the factory meets the national pressure vessel production standards.
Packaging & Shipping
1. We will deliver the retort machine by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do a trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
2. When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
by LCL/20'FCL/40'FCL depending on your order.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer.
Q: How long the warranty will be?
A: 5 Year warranty.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as a ticket, visa,
accommodation, and labor costs shall be on your side.
b. On-line service will be provided. If still is under the guarantee period, the necessary accessories and parts will be provided
free, but the transportation cost shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T, and irrevocable L/C payable.
Q: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
If you want to know more about our machine, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.

---
