Product Description
Product Description

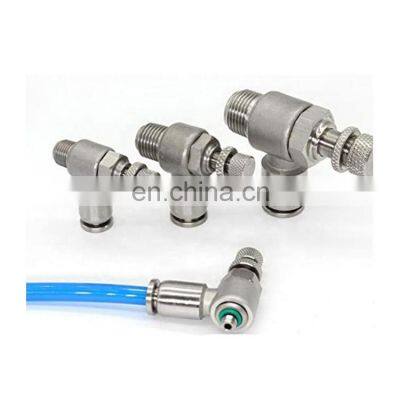

Product Description Throttle valve is a valve that controls fluid flow by changing the throttling section or throttling length. One-way throttle valve can be combined by connecting the throttle valve and the one-way valve in parallel. The throttle valve and the one-way throttle valve are simple flow control valves. In the hydraulic system of the quantitative pump, the throttle valve and the relief valve cooperate to form three throttle speed control systems, namely the throttle speed control of the oil inlet. system, oil return circuit throttle speed control system and bypass throttle speed control system. The throttle valve has no negative flow feedback function, and cannot compensate for the speed instability caused by the load change. Generally, it is only used for occasions where the load change is not large or the speed stability is not required.SpecificationTube diameterΦ4, Φ6, Φ8, Φ10, Φ12Working MediumAirWorking pressure0.095Mpa - 2.5MpaProof pressure1.6MpaProof vacuum pressure100KpaScrew circle10 (8) TurnWorking temperature30-110℃Body material Stainless steel PortM5*0.81/8'' 1/4''3/8''1/2''Thread seal coatingWith coatingL1L2HSTD1D218103.68M5Φ8Φ42415712R 1/8Φ12Φ62718915R 1/4Φ14Φ831209.519R 3/8Φ16Φ103322.511.522R 1/2Φ18Φ12Features:1. Parabolic design for precise control, smoother off-idle response and improved part-throttle driveability2. Contoured inlet profile outflows the competition's big-bore throttle bodies3. Less shaft twist for superior TPS signal stability4. Billet body with stainless steel shaft5. Robust throttle cam assembly, featuring a three-plate design6. Dual ball-bearing design offers shaft stability and smoother operation7. 4-bolt mounting for easy installationWhy Choose UsRelated ProductsCompany Profile Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access. We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates. Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.contaction
>>
