High Speed Auto Spare Parts /Dish Ended/Shovel Forming Hydraulic Press Machinery

Product Description

Prima Brand Ashtray Trolley Wheelbarrow Hydraulic Deep Drawing Press 150t/160t/200t/250t Pressure Hydraulic Press Machinery for Deep Drawn & Metal Stamping High Speed Auto Spare Parts /Dish Ended/Shovel Forming Hydraulic Press Machinery Video in Youtube:

https://youtu.be/0xEDh-vz1_A

https://youtu.be/k1p0_kLO-NE

https://youtu.be/FvMd_Wg38fY

Product introduction
1)Introduction to the structure and properties:
The Hydraulic press has three-beam and four-pole structure, which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful. Hydraulic control adopts plug-in valve system, which means reliable motion and long service life. The press,, which could realize three-operation mode: adjustment, manual and semi-automatic. The machine is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service. 315 Tons deep drawing hydraulic press wheelbarrow making machine with mold 150t/160t/200t/250t Pressure Hydraulic Press Machinery for Deep Drawn & Metal Stamping
Technical Specification, YL32-40 to YL32-630 ton Model:

Type(YL32)			Unit	25 Tons	40Tons	63 Tons	100 Tons	125Tons	160 Tons	200Tons	250Tons
1	Rated Nominal Pressure		KN	250	400	630	1000	1250	1600	2000	2500
2	Knock Out Force		KN	40	63	100	190	200	250	400	450
3	Back Stroke Pressure		KN	35	60	120	160	165	200	240	400
4	Ram Stroke Length		mm	300	350	450	500	550	580	710	710
5	Knock Out Stroke		mm	100	120	160	200	200	200	200	200
6	Max.Opening Height		mm	450	600	700	800	900	900	1120	1120
7	Ram Speed	Idle Stroke	Mm/s	65	40	100	100	120	100	120	130
		Work	Mm/s	6-12	10-20	8-16	8-15	7-15	4-10	5-12	4-10
		Return	Mm/s	80	100	85	85	90	70	95	60
8	Knock out speed	Knock out	Mm/s	55	60	55	60	75	75	80	80
		Return	Mm/s	80	95	105	100	140	140	145	145
9	Work Table size	L-R	mm	400	450	580	710	750	780	1000	1120
		F-B	mm	380	450	500	580	600	680	940	1000
10	Outline dimensions	L-R	mm	1250	1350	1900	2076	2500	2550	2650	2800
		F-B	mm	950	1050	1100	1200	1430	1600	2150	2280
		Height	mm	1950	2350	2450	3300	3350	3350	3800	3950
11	Motor capacity		Kw	4	4	5.5	7.5	7.5	11	15	18.5
12	Weight of the press machine		Kg	1950	`2850	3500	5500	6500	7650	9500	10300

Type(YL32)			Unit	315Tons	400 Tons	500Tons	630Tons	800Tons	1000Tons	1600Tons	2000Tons
1	Rated Nominal Pressure		KN	3150	4000	5000	6300	8000	10000	2*8000	2*10000
2	Knock Out Force		KN	630	630	1000	1000	1000	1600	2*1000	2*1600
3	Back Stroke Pressure		KN	600	500	900	850	1000	1300	2*720	2*1300
4	Ram Stroke Length		mm	800	800	900	900	1000	1000	1200	1300
5	Knock Out Stroke		mm	300	300	350	350	350	350	350	500
6	Max.Opening Height		mm	1250	1250	1500	1500	1800	1800	1800	1800
7	Ram speed	Idle Stroke	Mm/s	100	100	100	100	120	110	120	110
		Work	Mm/s	5-12	4-10	7-15	5-12	5-12	5-12	4-9	4-9
		Return	Mm/s	60	70	80	85	95	85	95	70
8	Knock out speed	Knock out	Mm/s	55	55	75	75	95	75	70	60
		Return	Mm/s	145	145	170	170	170	210	160	160
9	Work Table size	L-R	mm	1260	1250	1400	1600	2200	2500	2800	3200
		F-B	mm	1160	1250	1400	1600	1600	1800	2000	2200
10	Outline dimensions	L-R	mm	3500	3500	3900	4510	4800	5100	5600	4500
		F-B	mm	1500	1600	2150	2250	2400	2400	2600	3200
		Height	mm	4600	4850	5200	5400	5700	6000	6200	7200
11	Motor Capacity		Kw	22	22	222	222	230	222	330	337
12	Weight of the Machine		Kg	14500	16500	25500	33000	53000	72000	110000	160000

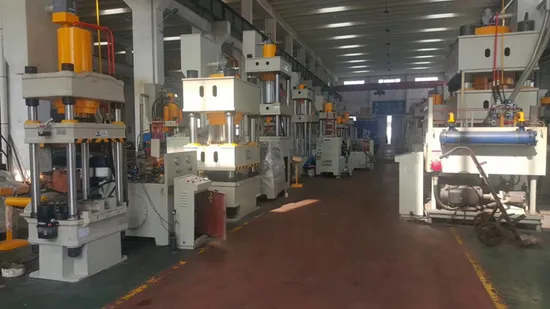

Hydraulic Deep Drawing Aluminium Cookware Manufacture Press MachineDetailed Photos:
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit.
FAQ: Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no,very safe. Deep Drawing Hydraulic Press Machine 100ton 200ton 1000 Ton Price Hydraulic Deep Drawing Aluminium Cookware Manufacture Press Machine New Design Y32 Series 200ton Hydraulic Press with Low Price China Manufacture Customized 100ton Four Post Hydraulic Press Machine Y27/Y32-315ton Deep Drawing and Forming Hydraulic Press Machine for Wheelbarrow/Trolley

---
