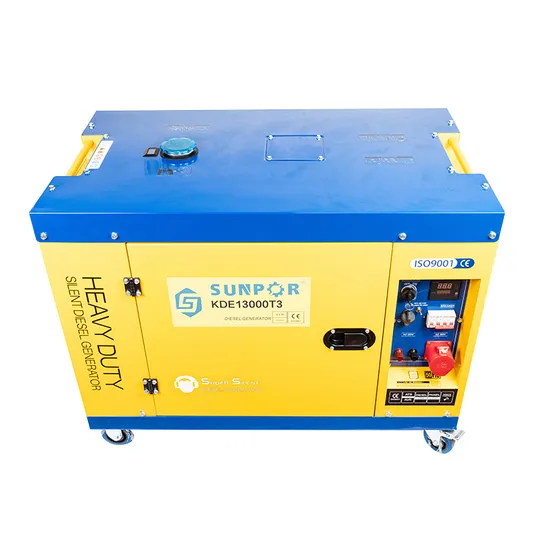

10kw 3 Phase 50Hz Mobile Portable Silent Diesel Generator for Home Use

Product Description

WUXI KATM POWER TECHNOLOGY CO.,LTD is a leading manufacturer specializing in the production of diesel engines, diesel water pumps (clean and high-pressure pumps), diesel iron water pumps (iron cast water pumps), open-type diesel generators, and silent diesel generators.Products are with differnt styles, please inquiry for details or recommendations.
Product Description
Main Features of Our KDE13000T
1. Silent: The silent diesel generator set is equipped with a soundproof cover and noise elimination technology.
2. Efficient and reliable: It adopts a high-efficiency diesel engine and is equipped with an advanced control system, which can output power stably and reliably with low energy consumption. At the same time, diesel engines have a long life and relatively low maintenance costs.
3. Flexible mobility: It can be quickly deployed and used and is suitable for many occasions.
4. Environmental protection and Energy saving:
5. Multi-functional applications: Silent diesel generator sets can be applied to various application scenarios, including construction sites, event venues, commercial uses, medical facilities, entertainment venues, etc. Its stable power output can meet the needs of different equipment and facilities. Product ParametersSingle cylinder Silent Diesel Generators: Powerful, Reliable, and Peaceful Energy Solutions

Single Cylinder Silent Diesel Generator
Model	KDE3500T	KDE6500T	KDE7500T	KDE8600T	KDE10000T	KDE13000T
Rated frequency(Hz)	50/60Hz
Rated output(kW)	2.5 2.8	4.5 4.8	4.8 5.0	6.0 6.2	8	9.5
Max.output(kW)	2.8 3.0	5.0 5.2	5.2 5.5	6.5 7.0	8.8	10
Rated voltage(V)	220 or as request
Rated current(A)	11.3 12.7	20.5 22.7	22.7 23.6	27.2 28.2	36.9	39.1
Rated speed(r/min)	3000 3600				3000	3000
Phase.No	Single Phase
Power factor	1					1
Insulation Grade	F					F
Pole Number	2					2
Excitation Mode	Self-excitation & constant voltage(AVR)
Panel Type	General Panel					General Panel
Receptacle	Two receptacles
DC12 output	Optional
Overall Dimension(LxWxH)mm	945x555x700	945x555x700	945x555x700	945x555x700	1050x620x730	1130X680x800
Dry Weight(kg)	144	150	150	155	195	220
Noise Level(7m)	72	72	72	72	72	72
Structure type	Silent
Engine Model	KM178F	KM186FA	KM188FA	KM192FC	KM1100FE	KM1103F
Engine Type	Single Cylinder,vertical,four stroke,direct injection,air cooled
Cylinder NO-Bore*Stroke(mm)	78*62	86*72	88*75	92*75	100*85	103*85
Displacement(cc)	296	418	456	498	670	740
Rated Power[kW(r/min)]	3.68/3000 4/3600	5.7/3000 6.3/3600	6.5/3000 7.2/3600	8.1/3000 8.7/3600	10.5/3000	12.5/3000
Compression Ratio	20:01	19:01
Lubrication System	Pressure splashed
Starting system	Recoil+Electrical					Electrical
Fuel Type	0#(summer)-10#(winter) -35(chillness) diesel
Lube oil brand	CD grade or SAE10W-30,15W-40
Lube capacity (L)	1.1	1.65	1.65	1.65	2	3
Fuel Tank Capacity(L)	16	16	16	16	28	28

Application
