Inmax Manufacturer M12 Switch with 12V 24V Gigabit for En50155 Train

Product Description

Product Description
M508C8 port Railway Gigabit Industrial Ethernet Switch Features and Benefits ☆Meet the EN50155 railway industry standard requirements. Designed for rail transportation applications.
☆With 8×10/100/1000M M12 ports.☆Redundant dual 24VDC power inputs. Built-in overcurrent protection, Reverse connection protection.☆-40 to 75ºC operating temperature range (WT models).☆No fan, low consumption, industrial design standard, industrial grade electronic components, environmental protection & lead-free production.☆Hard aluminum alloy case (Not sheet metal), wall mounting.☆IP Rating up to IP40.☆Without packet loss in 72 hours full load flow test. Introduction☆The M508B series M12 Gigabit Ethernet switches are designed for industrial applications in harsh environments. ☆The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. ☆The M508B series Ethernet switches provide 8 Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
☆No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
☆It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75ºC working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection. Product ParametersTechnology Parameters

Standards	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3z for 1000BaseX
	IEEE 802.3x for Flow Control
	IEEE 802.3az for Energy-Efficient Ethernet
Flow Control	IEEE 802.3x Flow Control
	Back Pressure Flow Control

Switch Properties

Packet forwarding rate	11.904Mpps
Processing Type	Store and Forward
MAC Table Size	16 K
Jumbo Frame Size	10KByte
Backplane	18G
Packet Buffer Size	2 Mbit

Interface

M12 Ports	10/100/1000MBaseT(X) auto negotiation speed
	Full/Half duplex mode
	MDI/MDI-X connection
LED	M12 Ports: Link/Act 1~8
	Power: PWR

M12 Ports Features	M12 8Pin X-Coded connector
	M12 5Pin Power port connector
	M12 5Pin Alarm connector

Power Requirements

Connection	5 Pin M12 connector
Input Voltage	Redundant Dual Inputs
M508C:	24VDC (9 to 36 VDC)
Remarks:	Meet EN50155 standard
No-load Power	5W @ 24VDC
Full-load Power	8W @ 24VDC
Redundant Dual Inputs	Present
Reverse Polarity Protection	Present
Over current protection	Present

Physical Characteristics

Housing	High strength meter housing (Optional IP67 waterproof housing)
IP Rating	IP40
Dimensions (W × H × D)	145 × 140 × 50 mm
Weight	800g
Installation	wall mounting

Environmental Limits

Operating Temperature	-40 to 75ºC (-40 to 167ºF)
Storage Temperature	-40 to 85ºC (-40 to 185ºF)
Ambient Relative Humidity	5 to 95% (non-condensing)

Industrial Standards

EMI	FCC Part 15,CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), Level 4
	EN61000-4-3 (RS), Level 3
	EN61000-4-4 (EFT), Level 4
	EN61000-4-5 (Surge), Level 4
	EN61000-4-6 (CS), Level 3
	EN61000-4-8,Level 5
Shock	IEC60068-2-27
Freefall	IEC 60068-2-32
Impact & Vibration	IEC60068-2-6, IK08
Railway	EN50155, EN50121-3-2, EN50121-4

Warranty

Warranty Period

5 years

Ordering

Product Model	Description
M508C	8×10/100/1000Mbps with M12 X-code connector. 24VDC, Redundant Dual Inputs, -40 to 75ºC operating temperature, IP40

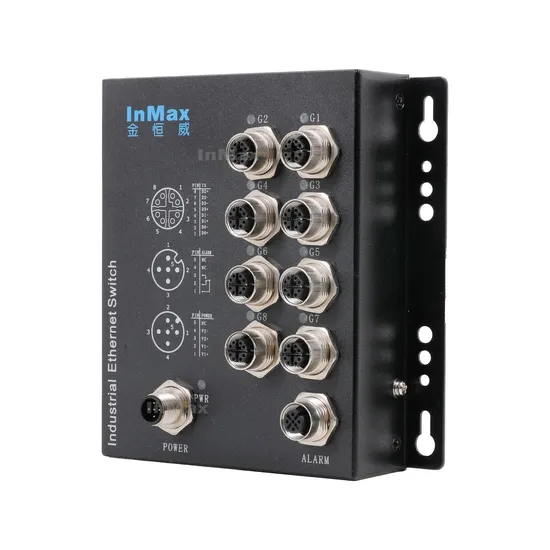

Detailed Photos
Company Profile
Our office
Our workshop InMax Fair PhotoShenzhen InMax Technologies Co., Ltd. has participated in (CPSE 2017) the 16th China Public Security Expo successfully.In 2017, the global focus on the 16th China Public Security Expo (CPSE), which is held in Shenzhen Exhibition Center. ShenzhenShenzhen InMax Technologies Co., Ltd. has launched a series of professional industrial Ethernet switches, to offer service to the safety city, smart city, intelligent transportation, and networking solutions. InMax participated in the 6th Shenzhen International Intelligent Transportation Exhibition (ITS 2017), got a complete success!InMax participated in this ITS fair, mainly to show the latest released rail vehicle industry Ethernet switches which meet the standard EN50155, and provided professional network communication solutions.InMax network communication equipment are being widely used in urban road construction and vehicle communication data transmission in major cities.
FAQQ1: Are you a factory or trading company.
A1: We are professional manufacturer, and our main products are industrial switches, which are all produced by ourselves in Shenzhen, China.
Q2: Can I get sample?
A2: Yes, we can provide sample based on your need, pls feel free to contact us for more details.
Q3: Do you supply OEM/ODM service?
A3: Yes, we can provide not only OEM service but also ODM service. We are professional on R&D, thus we can provide customized products if there is certain order quantity.
Q4: What is your MOQ?
A4: We don't have MOQ limited. 1 piece is ok.
Q5: How long is your delivery time?
A5: 3-5 days if we have stock for your order, if not, it might be 3-4 weeks. Of course, it depends on the quantity.
If you are interested in our products, pls do not hesitate to send us inquiry.
Contact us, and let's cooperate happily, too !

---
