Tier 1 Mono 550W 600W 700W 800W 1000W Solar Panels Factory for Solar System Home

Product Description

Product Description
Technical Specification Data(STC) of Solar Panel

Model	RSM540-144HC	RSM550-144HC	RSM560-144HC	RSM570-144HC	RSM580-144HC
Rated Maximum Power at STC	540W	550W	560W	570W	580W
Maximum Power Voltage(Vmp/V)	41.64	41.96	42.28	42.59	42.89
Maximum Power Current(Imp/A)	12.97	13.11	13.25	13.39	13.53
Open Circuit Voltage(Voc/V)	49.60	49.90	50.20	50.50	50.80
Short Circuit Current(Isc/A)	13.86	14.00	14.14	14.28	14.42
Module Efficiency(%)	20.9	21.3	21.7	22.1	22.4
Standard Test Condition(STC)	Irradiance 1000w/m², Cell Temperature 25ºC, Air Mass AM1.5

ELECTRICAL DATA(NOCT)
Maximum Power-PMAX (Wp)	408W	416W	424W	432W	440W
Maximum Power Voltage(Vmp/V)	38.99	39.44	39.90	40.34	40.78
Maximum Power Current(Imp/A)	10.47	10.55	10.63	10.72	10.80
Open Circuit Voltage(Voc/V)	46.43	46.68	46.93	47.19	47.45
Short Circuit Current(Isc/A)	11.09	11.17	11.25	11.33	11.41
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.

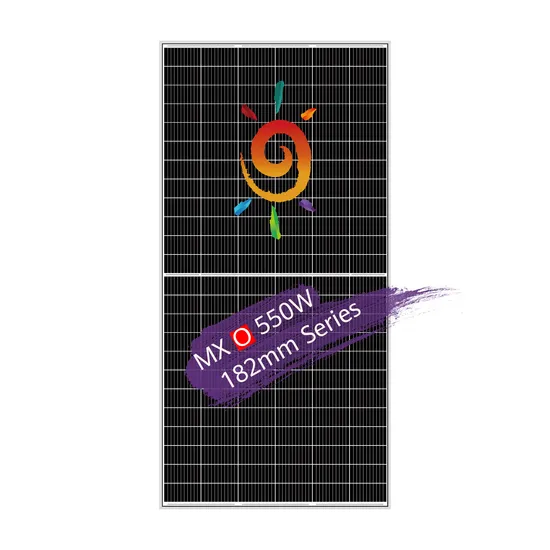

Detailed Images of Solar Panel
EVA Solar Cell Frame High Transmittance EVA,High GEL Content To 5BB, 6BB, 9BB, 10BB, 12BB Available 35mm 40mm Anodized Aluminium
Provide Good Encapsulation And Protect Cells 158.75cells, 166cells, 182cells,210cells Alloy
From Vibration With Longer Durability. High Efficiency Cells Anti-Pid Black/Silver Color Optional Junction--Box Compatible MC4 Label IP 68 rated Waterproof MC4 Compatible /MC4 EVO2/TS4* Waterproof Customized Label
Innovative Full-Glue-Filled 500N Tensile Strength OEM/ODM with your Logo Portrait/Landscape Length Optional Female/Male/Fuse Professional Silver Color
Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days
Factory & Stock
Projects
Rosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed
for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types.
Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial
projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock.
