Product Details
Product Description
Product Description
Product description
Radar Level Gauge is a liquid (material) level recording instrument in the measurement.
The microwave pulse is sent by the antenna,and then is reflected by the material surface , then is received by the radar systems.
Then is sent to the electronic circuit, the microprocessor can identify the microwave pulse echo regenerate the material or the surface of the liquid.
The correct signal is done by intelligent software, up to millimeter accuracy, nonapplicable harsh environments.
The characteristics of radar level transmitter
What's the Specification Our Radar Level Sensor?
1. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.
Product name:
| 26G radar level meter
|
Casing window
| Polycarbonate
|
The ground terminal
| Stainless steel
|
Cable entrance / plug
| One M20xl.5 cable entrance
One blind plug
|
Terminal
| Conductor cross section 1.0m
|
The output signal
| (4 ~ 20) mA/RS485
|
Communication protocol
| HART
|
Resolution
| 1.6u A
|
Fault signal
| Constant current output; 20. 5mA 22mA
22mA 3.9mA
|
The integral time
| (0 ~ 50) s, adjustable
|
Blind area
| the ends of the antenna
|
The maximum distance measurement
| 70 meters
|
Microwave frequency
| 26GHz
|
Communication interface
| HART communication protocol
|
The measurement interval
| about 1 second (depending on the parameter settings)
|
What is The Application of Radar Level Sensor ?
Model
| HR261
| HR262
| HR263
| HR264
| HR265
| HR266
|
Application
| All kinds of corrosive liquid
| Liquid
| Solid material, Strong dust
| Solid material, Strong dust
| Solid particles, Powder
| Hygienic liquid storage,Corrosive container
|
Measuring Range
| 20 meters
| 30 meter
| 70 meters
| 70 meters
| 30 meters
| 20 meters
|
Process Connection
| Thread, Flange
| Thread, Flange
| Universal Flange
| Universal Flange
| Thread, Flange
| Flange
|
Medium Temperature
| -40°C ~ 120°C
| -40°C~ 150°C
| -40°C ~ 250°C
| -40°C~ 250°C
| -40°C~ 250°C
| -40°C ~ 150°C
|
Process Pressure
| -0.1~0.3 MPa
| -0.1 ~ 4.0 MPa
| -0.1 ~ 0.1 MPa
| -0.1 ~ 0.1 MPa
| -0.1 ~ 4.0MPa
| -0.1 ~ 4.0MPa
|
Accuracy
| ± 5mm
| ± 3mm
| ± 15mm
| ± 15mm
| ± 10mm
| ± 3mm
|

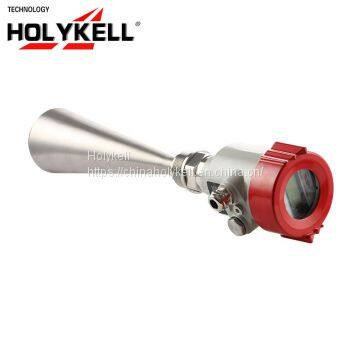

Product detail of radar level transmitter
>>
