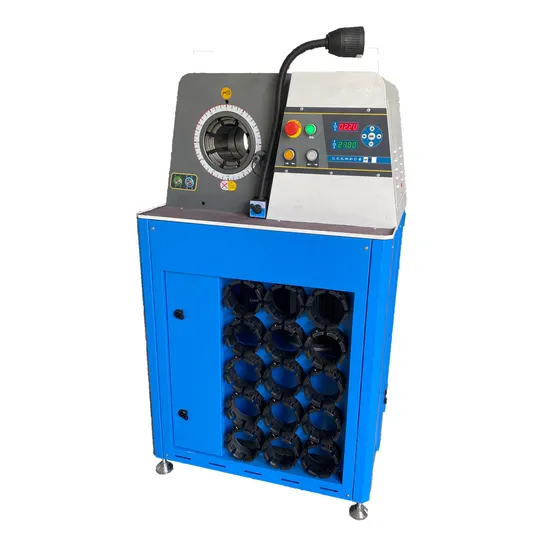

Factory Hose Crimping Tool Tube Shrink Machine Ruber Swaging Machine Km-91c-8

Product Description

Product Description
This hose crimper is our mature product. With the upgraded technology, the machine can crimp 2" 4SP hose easily without full load. About inconvenient to fill lubricating oil to the annular head, we install the self-filling oil cup and oil groove, with which oil can be filled automatically. The resin gasket between die base can protect the machine from debris dropping. Considering to crimp the non-standard bend, we enlarge the opening and passing ability. Moreover, integrated hydraulic system keeps the operation stronger and more stable. The new developed operation system makes the crimping more efficient and accurate.
Product Parameters

Max hydraulic hose	2"6SH
Crimping range	1/4"-2"
Accuracy	0.01mm
Max opening without dies	122mm
Max die opening	28mm
Motor & voltage	3kw/380V
Cycle time	1S / 5S
Noise level	69dB
Oil tank volume	65L
Machine weight	300kgs
Package weight	380kgs
Machine dimension	800*630*1376 (mm)
Package dimension	880*720*1590 (mm)
Die sets	12 sets

Detailed Photos
Our Advantages
1).Microcomputer control, accuracy and reliability;
2).Cromp capacity can be precisely controlled, repeat precision of 0.01mm;
3).Back reseting hydro-cylinder, can be easily operated;
4).Increasing the opening, and good passing performance;
5).Added with base-protective resin gasket to not damage the working surface;
6).Function: manual, semi-automatic and automatic;
7).Big swaging force, can easily crimp 2 inch 6 wires hose.The machine head is integrally forged instead of casting, ensuring the high precision and long service life
We add shortcut buttons under the head at side, which makes your crimping easier and more convenient The newest control system provides various models for your choice, it is easy and intelligent to operate,even less experienced operators can quickly learn to use it after a few uses The machine is equipped with quick change system, the die rack & quick change tool make it easy to change & store dies
Applications
1).Suitable for high precision pressing of low and high pressure hose from 1/8 inch to 2 inch internal hose pipe.
2).Used rubber hose to transmit hydraulic pressure as there working power.
3).Used in Building Construction, Petroleum Industry, Chemical Industry, Car and motor Industry.
Hydraulic hose crimping machine why not choose kangmai ?
1. kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.
2. The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.

---
