Left Right Trapezoidal Flat CNC Round Circular Saw Blade Sharpener Grinder Machine

Product Description

Product Display

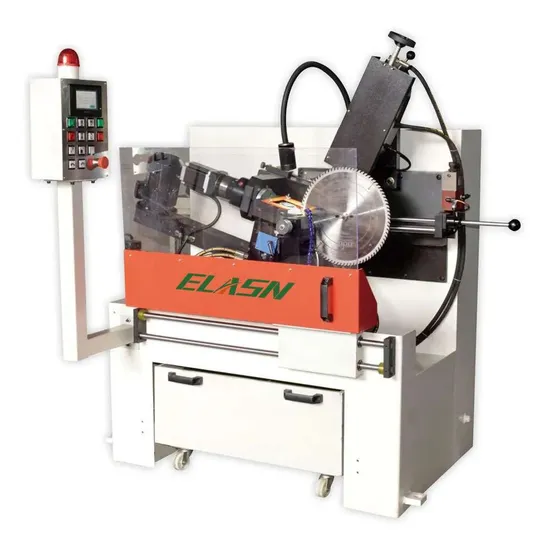

ELA-026 Open Type
ELA-026 Closed Type
Product Parameters
Model ELA-026

Processing Outside Diameter Range	φ100-800mm
Hole Size	φ10-220mm
Saw Blade Thickness	1-8mm
Tooth Distance	5-100mm, Customized
Tooth Surface Angle	1-45°
Tooth Tip Back Angle	2-45°
Tooth Left and Right Angle	45° of tooth top and tooth surface
Grinding Stroke Range	Max 28mm tooth/min
Edge Grinding Speed	0.5-6mm/s
Working Speed	Max 20 teeth/min
Wheel Size	125mm*32mm
Negative Chamfer Grinding	-27
Grinding Head Rotating Angle	90°&180°
Grinding Wheel Line Speed	26m/s
Coolant Pump Flow	50L/min
Coolant Tank Volume	85L
Total Power	3kw
Voltage	380V/optional
Machine Size	1500*1300*1900 mm
Machine Weight	900kg

Tooth Profiles Can Be Grinding/Sharpening:
Both Face and Top Sides Can Be Grinding/Sharpening
Detail Imagines
Features of Double Grinder Wheels Side Blade Sharpening Grinding Machine
1. Automatic saw blade grinding machine, with intuitive structure, simple operation, practical, precise, beautiful and so on.
2. According to different chip requirements to change the cutting angle of the sawtooth, tooth, tooth depth, can easily grind sharp blade.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth).
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.

Application
A circular saw blade sharpening machine is a specialized tool used to sharpen and maintain the cutting edges of circular saw blades. These machines are designed to restore the sharpness and cutting performance of circular saw blades, ensuring clean and efficient cuts.
Circular saw blade sharpening machines are designed to provide precise and accurate sharpening of circular saw blades. They use specialized grinding wheels or abrasive belts to remove material from the blade's cutting edge, restoring its sharpness and ensuring consistent tooth geometry.
Circular saw blade sharpening machines can handle various sizes and types of circular saw blades. They can sharpen blades with different diameters, tooth configurations, and tooth pitches, making them suitable for a wide range of circular saw applications.
