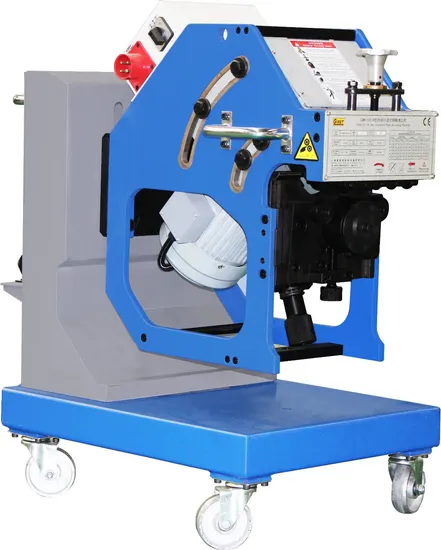

GBM Self-propelled Plate Edge Cold Beveling Machine

Product Description

GBM Self-propelled Plate Edge Beveling Machine
This series machine is mainly for metal plate edge beveling for welding preparation. It is widely used in welding industry such as aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process carbon steel, stainless steel, aluminium alloy etc.
Technical Parameter

Model	GBM-6D	GBM-12D	GBM-12D-R	GBM-16D	GBM-16D-R
Power Supply	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ
Total Power	400W	750W	750W	1500W	1500W
Motor Speed	1450r/min	1450r/min	1450r/min	1450r/min	1450r/min
Feed Speed	1.2-2.0m/min	1.5-2.6m/min	1.5-2.6m/min	1.2-1.6m/min	1.2-1.6m/min
Clamp Thickness	4-16mm	6-30mm	6-30mm	9-40mm	9-40mm
Clamp Width	≥55mm	≥75mm	≥75mm	≥115mm	≥115mm
Process Length	≥50mm	≥70mm	≥70mm	≥100mm	≥100mm
Bevel Angle	25°, 30°, 37.5°, 45°	25°-45° (adjustable)	25°-45° (adjustable)	25°-45° (adjustable)	25°-45 (adjustable)
Single Bevel Width	6mm	12mm	12mm	16mm	16mm
Bevel Width	0-8mm	0-18mm	0-18mm	0-28mm	0-28mm
Cutter Plate	φ78mm	φ93mm	φ93mm	φ115mm	φ115mm
Cutter Qty.	1Pce	1Pce	1Pce	1Pce	1Pce
Worktable Height	460mm	700mm	700mm	700mm	700mm
Floor Space	400x400mm	800x800mm	800x800mm	800x800mm	800x800mm
Net Weight	33kg	155kg	235kg	212kg	315kg

Features
1. High quality transmission reducer with efficiency and stability.
2. Shock absorption to move with fast beveling.
3. Process with electric and easy adjustable for even un-professional worker to reduce labor cost.
4. Low noise while processing by imported motor.
5. Processing material could be carbon steel, stainless steel, alloy, clad plate, etc.
6. Feeding used efficient gear system.
7. Electrical wiring comply with CE standard and safety system.
8. Special parts used high wear-resisting and hardness material
9. Favourite price for a high quality tool.
10. Accessories parts and tools will be offered in a tool box together with manual.
Guide
Before order, please show us the following information.
1. Choose the right model.
2. Confirm your electric power supply (voltage, frequency and phase).
3. Confirm the beveling angel required.
4. Confirm the welding joint required (U, V, double V or compound preparation).
5. Advise your plate material (carbon steel, stainless steel or others).
6. Other special demands about machine.
7. The spare parts needed.
