Y81-1250 Turn out Manual Hydraulic Scrap Iron Baling Machine

Product Description

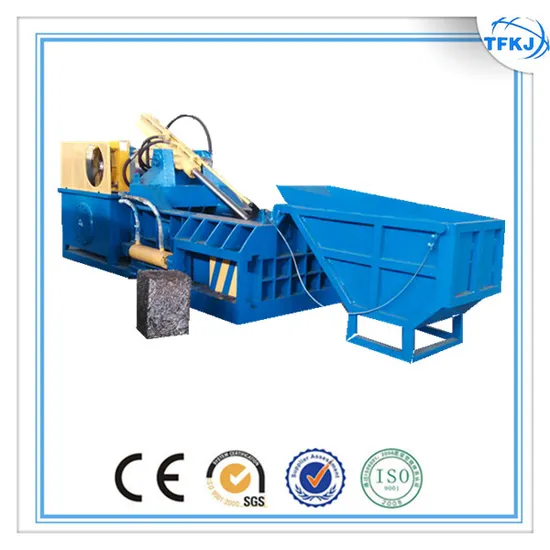

Y81-1250 Turn out manual hydraulic scrap iron baling machine
1.Application:
Y81-1250 Baling press from the Jiangyin Tianfu Technology Co.,Ltd is hydraulic press with triple-acting compaction and an ejection door. They are able to press steel sheets, brass, copper, and aluminum scrap that is generated by press works, refineries, and recycling industry scrap yards, into high density bales.
Y81 series of hydraulic metal balers are applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes: Cuboid; Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.
2.Features:
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging: "turn-out", "push-out", "forward-out" or manual discharging.
3)No footing bolts needed in installation; Diesel engine can be equipped for power.
4)Baling force 10 grades from 63 to 400 tons; Productivity from 4 to 40 tons per shift(8 hours).
3.Main data:

No.	Item		Unit	Parameter
1	Nominal push force	Main cylinder	KN	1250
		Side cylinder	KN	950
2	Hydraulic System Pressure		MPa	25
3	Compression room	L	mm	1200
		W	mm	700
		H	mm	600
4	Stroke of cylinder	Main cylinder	mm	500
		Side cylinder	mm	950
5	Bale size	L	mm	150~360
		W	mm	300
		H	mm	300
6	Bale density		Kg/m³	≥1800
7	Single Cycle Length		S	~120
8	Oil pump	Rated pressure	MPa	31.5
		Rated outflow	Ml/r	63
9	Motor	Power	KW	15
10	Operation	Hand valve control
11	Overall size	3300*2400*1900mm
12	Machine weight	Approx. 5.3Tons

4. Advantages:
1). Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn't need to install. One machine puts in one 20" container. And it saves ship cost.
2). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
3). We use good quality seals, so no oil leak.
4). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
5. Service:
1) Lifelong maintenance and considerate technical support!
2) Any problem before or after delivery, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service.
4) Video / CD of test running and installation, User's Manual.
5) Complete parts & tools in box sent with machine.

---
