Factory Price Intelligent Logistics Conveyor System Wms Telescopic Belt Conveyor

Product Description

Telescopic Truck Loading Conveyor Introduction
Telescopic truck loading unloading conveyor operation situation of accord with human body engineering, which can realize the rapid loading and unloading, suitable for all kinds of freight cars of cargo handling. This Telescopic belt conveyor can freely expand and contract in the length direction and control the length of the conveyor at any time. It can transport materials in both directions and can be used in conjunction with other conveying equipment and material sorting systems to realize automated production of materials entering and exiting warehouses or vehicle loading and unloading. It is widely used in various industries.
Truck Loading Conveyor Application
Telescopic truck loading unloading conveyor is suitable for loading and unloading trucks, cartons, woven bags, packages, luggage, tires, plastic boxes/drums, etc.
Truck Loading Conveyor Features
1. This conveyor only requires 2 people to move to different working locations at will.
2. Push it directly into the car, and can work inside the car about 10 meters deep.
3. When this conveyor is operating, the operation can be completed by manually dragging the goods close by, loading the goods in the forward direction, and unloading the goods in the reverse direction. The loading and unloading efficiency can reach about 30 pieces of goods per minute.
4. The operating position of the conveyor can be adjusted in various directions according to the operation requirements. Using the original mechanical arm hydraulic device, the height can be raised to 4 meters and the lowest can be lowered to 2 meters, which solves the problem of difficulty in palletizing heavy goods.Telescopic Conveyor
Truck Loading Conveyor Parameters

Name	Tyрe	Fixed length-A ( mm )	Stretch length-B ( mm )	Overall length	Effective Width	Conveying height
Two Sections	XJ-SS-2-3/2	3000	2000	5000	800	800
	XJ-SS-2-5/3	5000	3000	8000	800	800
	XJ-SS-2-6/4	6000	4000	10000	800	800
Three Sections	XJ-SS-3-5/7	5000	7000	12000	800	800
	XJ-SS-3-6/8	6000	8000	14000	800	800
	XJ-SS-3-7/9	7000	9000	16000	800	800
Four Sections	XJ-SS-4-6/12	6000	12000	18000	800	850
	XJ-SS-4-7/14	7000	14000	21000	800	850
	XJ-SS-4-8/17	8000	17000	25000	800	900
Five Sections	XJ-SS-5-6/16	6000	16000	23000	800	900
	XJ-SS 5-7/17	7000	17000	24000	800	900

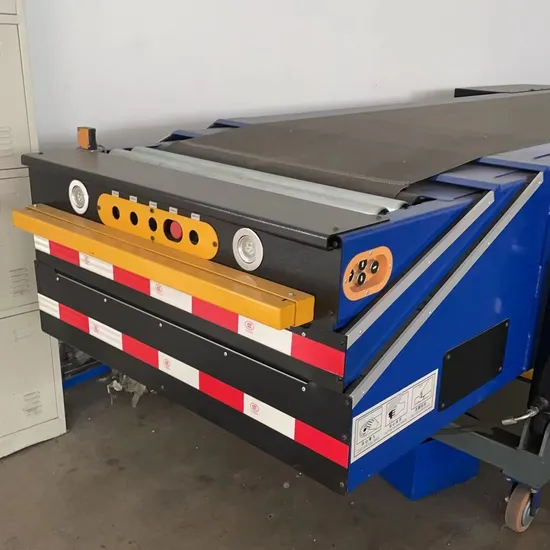

Truck Loading Conveyor Pictures
This type conveyor can be customized according to your requirements, please feel free to contact us.
Packaging&Shipping
About Us
Advanced Logistics Equipment (Shenzhen) Co., Ltd. is a high-tech enterprise specializing in the R&D and production of intelligent sorting systems and providing intelligent logistics solutions. Sorting machine equipment helps you improve warehousing efficiency, improve production efficiency, improve the efficiency of sales process management and reduce operating costs!
Pictures of Our Company Cooperative Partners
Engineering Cases
Why Choose Us
1. We can provide a whole warehouse Transport system and Solutions.
2. We have honest, sincere and experienced sales team to answer all your questions;
3. Professional and talented engineer team to meet your specific demands;
4. We focus on intelligent logistics and manufacturing.
FAQ
Q1. Are you trade company or manufacturing company?
We are manufacturing company.
Q2. What's your advantage?
Advanced logistics technologies co., ltd is a national high-tech enterprise. We have our own software development team with complete, fast and efficient R&D capabilities. We support OEM and ODM services.
Q3. What is the services?
Pr-sales: Customized solutions, planning and design, one -to-one service. After sales: 7 days 24 hours on line service, remote guidance of installation, docking with customer software system.
Q4. How long is the product warranty period?
12 months.
Q5. What is your payment terms?
T/T, L/C, D/P, D/A etc.
Q6. Where is your company located?
Both our company and factory are located in Guangdong.
PLEASE feel free to contact us if you have any confusion about anything.

---
