Qingdao Interplast Machine Plastic Twin/Single Extruder/Extrusion PVC PE PPR PP HDPE Pipe Agriculture Water/Gas /Drainage/ Water Supply Pipe Line/Extrusion Line

Product Description

Qingdao Interplast Machinery Plastic Twin/Single Extruder/Extrusion PVC PE PPR PP HDPE Pipe Agriculture Water/Gas /Drainage/ Water Supply Pipe Line/extrusion line
HDPE Plastic Water Supply Pipe Making Machinery adopt high speed extruder with high efficient,energy saving. The extruder have water recycled inside with metering material loading device;
The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products. The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency.

Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢65mm	¢65mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC45kw	AC55kw	AC110kw	DC160kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	80-120kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	18m/min	12m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

1, Auto feeder and Gravimetric feeder: Gravimetric feeder can control the pipe wall thickness in high precision.
2,High efficient single screw extruder L/D: 38:1 , Siemens Motor or Xinhengli Motor, Guomao Gearbox or Fanshili Gear box;
3,Die head: Nitrogen and Chromeplating treatment; Mouth mould and core mould smooth surface; Finish pipe shining. ABA,ABC,AB multilayers die head can be customized;
4,Vacuum Calibration Tank: Vacuum pump with high degree; Control cabinet with converter control; Electric lift and manual lift can be choice; With location.
5,Cooling Tank: Tank body adopt SS304; Spray nozzle is virgin material;
6,Haul-off Machine: Servo motor is used in the haul-off machine, high speed, low electric cost.
7,Chipless cutting machine: oil cylinder control; Cutting section smooth;
Commissioning of Qingdao Interplast Machine Plastic Twin/Single Extruder/Extrusion PVC PE PPR PP HDPE Pipe Agriculture Water/Gas /Drainage/ Water Supply Pipe Line/Extrusion Line

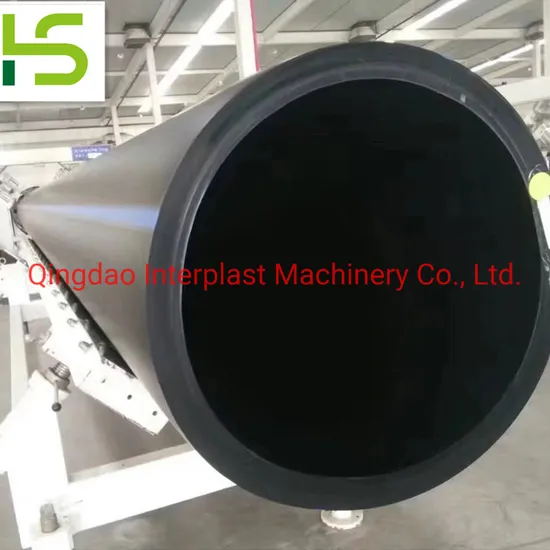

500-800MM HDPE Pipe extrusion machine is ready to ship;
Single Station Recoiler for 63-110mm hdpe pipe;
FAQ:
1,Why choose us?
We are the professional manufacture focus on HDPE Pipe Production Line/HDPE Pipe Extrusion Machine/HDPE Pipe Line/HDPE Pipe Machine/PPR Pipe Extrusion Line and etc...
2,What's the advantage do we have?
We adopt high efficient extruder with deep groove and water recycle inside, high capacity,high efficient,energy saving;We have the updated product that keep innovate tehcnology according to the market requirement;
Factory Display:

---
