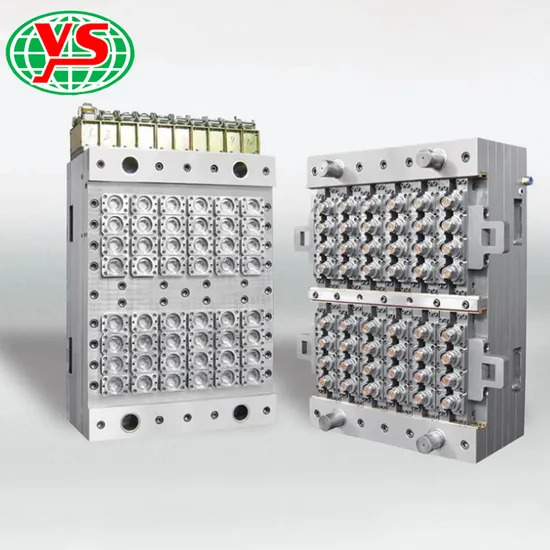

Custom Plastic Injection Mould PP Flip Top Oil Bottle Cap Mold with Easy Pull Ring

Product Description

Custom Plastic Injection Mold PP Flip Top Hair Shampoo Bottle Cap Mould
Product Parameters

Name	Plastic Cap Mould
Cavity	1-72
Mould base material	P20 , 45# , 4CR13 , .ECT
Core&Cavity material	S136,718, P20,2378,2316,4CR13,P20 .ECT
Runner	Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
Life time	3,000,000 shots
Quick T1 time	25-40 days
Package	wooden case

Product Description
Oil Bottle Cap Mould DetailsHighlight: Excellent in interchangeable cores molds design & making. Molds can be interchangeable on molding machines.
Mold Steel: Buderus, Assab, AISI & JIS(including preharden steel and fully harden steel)
P20(=1.2311),S136(=1.2344), Starvax 420(=stainless steel)
Mold Base: Hasco standard, European standard, world standard Surface Finish: Texture(MT standard), high gloss polishing Engraving: Date stamps(year and month), logotype, etc Mold sampling-Mold trial: Trial molding machine available: from 50~2500T
Features
Oil Bottle Cap Mould
The mouth of edible oil bottle is 28MM, 30MM, 45MM. 28MM capacity is usually 500ml, 1L, 1.5L, 2L. 2.5L. The cap has a combination of upper and lower caps. The upper cap can be divided into two types: tear off anti-theft and non anti-theft. The lower cap is mostly opened by the middle pull ring. There are pull rings in some flap cap of 28MM and 30MM, it is more convenient to open and close them directly without unscrewing the threads
ADVANTAGE
1) Saving 10%-30% cost than others.
2) Direct factory price
3) Life:3, 000, 000 time
4) 2D and 3D provided
5) Quick T1 time: 25-40 days
6) More than 15 years experience
Detailed Photos
3. MOULD MANUFACTURE PROCESS:
1) Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install

2) Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→electroplate→install

4. AFTER SALE SERVICE:
Any mould problem,we will provide free maintenance service Company Profile
Taizhou Huangyan Yongsheng Mould Co., Ltd, founded in 2007, is located at Zhejiang province. It is near Hangzhou and Ningbo port. And domestic flights can arrive directly. You can go anywhere freely. Our company covers an area of more than 1, 000 meters. We are specializing in the development, production and sales of no gate hot runner cap mould, cut-free independent self-locking gate perform mould, free-gate valve perform mould, anti-theft cap mould, die cut cap mould, handle mould, bottles mould and daily necessities mould. Now we have had first-class experts and production machines.
After many years of efforts and sustained fast developments, we have obtained customers' recognition with our scale, quality and good faith. Now we have got a clear advantage on technologies and equipments levels, quality grades, market share etc. And our core competencies are keeping on being stronger and stronger. It goes without saying that our company will develop steadily, rapidly and healthily. In order to be more professional, solider, stronger and bigger, we insist on perfect quality, good faith and customers first from our foundation, never stopped developing technologies and products.
Now our products are popular in domestic market, and become a famous national brand. In oversea market, they are sold to Americas, Europe, Middle East, Africa and Southeast Asia. We will keep on fast development, strengthening personnel training and introduction, developing technologies, enhancing the capability of independent innovation, accelerating new plastic perform development, improving technology progress and industry upgrade, and carry out "going-out" strategy seriously, take part in the competition actively to open much wider market all over the world.
"YONGSHENG- keeps up with times and makes friends with all over the world"
Q:Could I have a sample to check the quality ? A:Yes,for the ready in stock models, we could send out samples immediately, For out of stock models, we provide sampling service according to your requirement.
Q:How does your factory do regarding quality control? A:Quality is priority! And all of raw material we used are environmental-friendly; Quality control department specially responsible for quality checking in each process.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What's your payment term?
A:T/T, Paypal, Or ****** trade assurance.
Q:How much is the shipping cost?
A:It depends on the total weight of your order and the way you chose for shipping.There are International Express Door to Door,Airline Company and Ocean Transportation available.
Q:When is the delivery time?
A:According to your order quantity,the delivery time will be different. but all based on what materials what do you need.We will be very surportive in delivery if client has unchangeable promotion plan.

---
