60/80/100/120 Diamond Gangsaw Machine Bm Gangsaw Cutting Machine for Marble Blocks

Product Description

Gang Saw

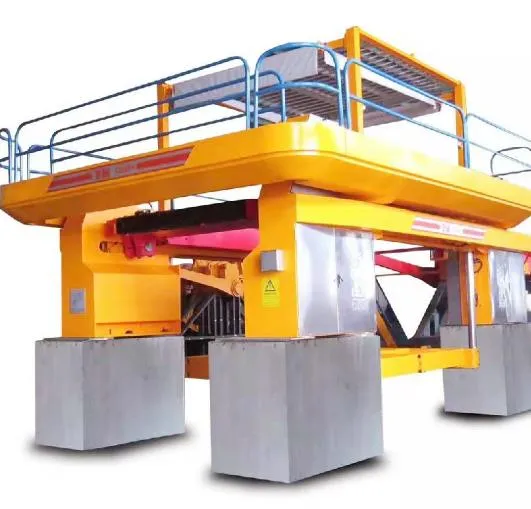

BM-60/80/100/120/S800 Diamond Gangsaw is a sliding sleeve double link saw for sawing blocks of marble or other limestones, sandstone, synthetic stone with a system that lifts the block as it's sawn.
This gangsaw, also know as diamond frame saw, diamond row saw and marble frame saw, has been designed to get perfect output at low operational cost. It's highly urged for the reliable functionality, rust resistance, easy operation, low maintenance and durability.
Main Features: 1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 60/80100/120 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states of the equipment, and display fault cause alarm prompt.

Product Parameters

Thechincal Data
Model No.		BMT-80/S800	BMT-100/S800
Number of blade	pc	80	100
Blade length	mm	4400	4400
Working stroke of blade	mm	800	800
Max.cutting size of block	mm	3200x2500x200	3200x2500x200
Min.cutting thickness of slab	mm	16	16
Cutting feed	mm/h	50-400	50-400
Power of main motor	kw	110	132
Block trolley size	mm	2050x3200	2550x3200
Gross weight	kg	52	62
Dimensions (L x W x H)	cm	11900x5060x4960	11900x5560x4960
