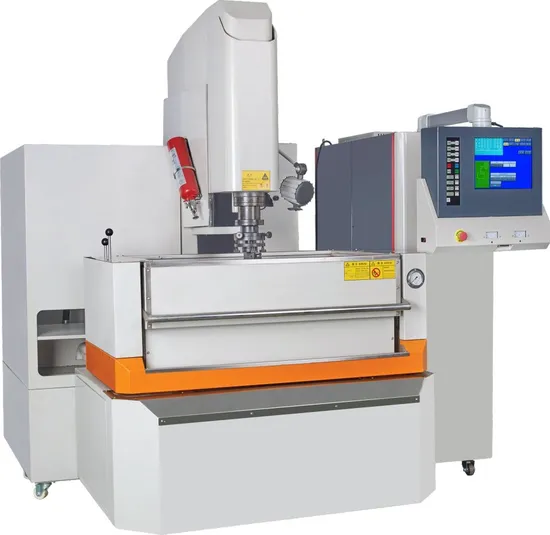

CNC EDM A40 600*400mm Professional High Precision Processing High Finish Simplicity Machining Equipment Mirror Spark Machine

Product Description

Product Description
CNC-EDMA40/A45
Processing characteristics:
-High machining accuracy.
-High gloss finish on large areas
-The uniformity of PlKA surface processing in small areas.
-The system is equipped with a dedicated carbide machining circuit.
-Enriched shaking function makes processing easy.

Machine features:

-Applicable to small precision molds with high precision and good stability.
-The "cross" table cast iron structure enables the machine to realize high speed and high precision machining characteristics.
The main components such as guide rails, screws, bearings, motors, drives, etc. are all imported to ensure the long-term stable operation of the machine tools.
-The workbench is made of high quality precision granite.
-The centralized lubrication system facilitates the maintenance and upkeep of the machine.
-The humanized operation panel makes the operation easier.

Detailed Photos
Product Parameters

Terms / Model	Unit	A40	A45
Worktable Size (L*W*H)	mm	600x400	700x400
Working Fluid Tank (L*W*H)	mm	990x620x410	1050x680x410
Max Fluid Level of The Working Fluid Tank	mm	300	247
Travel X-Axis,Y-Axis,Z-Axis	mm	400x300x270	450x350x270
Max Z-Axis Loading Weight	kg	25	25
Max Work Piece Weight	kg	400	400
Min/Max Distance From Plate Electrode to Worktable	mm	330-600	330-600
Boundary Dimension (L*W*H)	mm	1500x1684x2250	1420x1700x2350
Machine Weight (Without Digitally Controlled Power Source)	kg	2200	3200
Fluid Mapper Supply Tank Capacity	L	600	750
Filtering of Working Fluid		Transformational paper core filter	Transformational paper core filter
CNC Pulse Power Supply Devices		A1-50	A1-50
Input Power	V	380V(China)	380V(China)
Total Output Power	KVA	9	9+9

Packaging & Shipping

Installation Instructions
Example of comprehensive processing (mirror surface)
*Model used: A4d
*Material pair: Copper-S136 (imported
*Size: 30x40mm (curved surface sample
*Surface roughness Ra5.0.4p n
*Processing charactenistics: high hardness, high finish
*Processing time: Sh30min (curved surface sample
--------------------------------------------------------------------------------------------------------------------------------------------------------
Razor molds
*Fine discharge control to meet both surface and edge discharge requirements
*Using model: A40
*Material pair: Copper NAK80
*Size: 50x 50mm
*Surface roughness Ra 0.4um
*Processing characteristics high hardness, uniform grain
*Processing time:7h
FAQ
Q: How long is the product warranty ? A:12 months
Q: Does your machinery have high machining accuracy ? A:Our processing accuracy can reach 0.01-0.02 mm.
Q: Do you have after sales service ? A: Yes, We have a one-year warranty
Q: Do you test your machine before delivery ?A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
