| US$1,000.00-50,000.00 | 1 Set (MOQ) |

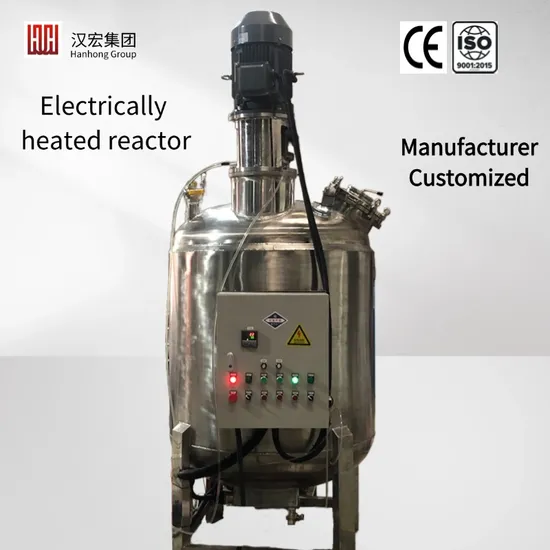

| Reactor Detailed Specifications | |||||||||||||||||
model | kw | capacity | Material | Heating method | Heat transfer pipe | Condenser | Condensation Area | Vacuum Pump | Lined with anti-stick | Lined with anti-corrosion PTFE | Barrel size and height | r/min | mm thickness(mm) | Discharge port size | Heating power | Thermal oil | |
| HH-50 | 0.55kw | 72L | Materials can be selected and heating methods can be added as needed. | Add heating pipes as needed | Match the condenser according to product requirements | 2 | 2.2-7.5KW | support | ø400*650 | 35-60 | 500 | 2.5 | 1 | 6kw | 40L | ||
| HH-100 | 0.55kw | 140L | 2 | ø500*800 | 36-60 | 500 | 2.5 | 1 | 6kw | 50L | |||||||
| HH-200 | 0.75kw | 240L | 2 | ø600*950 | 36-60 | 800 | 2.5 | 1.5 | 12kw | 85L | |||||||
| HH-300 | 1.5kw | 380L | 3 | ø700*1100 | 36-60 | 1200 | 2.5 | 1.5 | 12kw | 100L | |||||||
| HH-500 | 2.2kw | 670L | 3 | ø900*1200 | 36-60 | 1500 | 3 | 1.5 | 18kw | 150L | |||||||
| HH-1 | 3kw | 1350L | 5 | ø1100*1600 | 36-60 | 1500 | 3 | 2 | 18kw | 250L | |||||||
| HH-1.5 | 4kw | 1750L | 5 | ø1200*1750 | 36-60 | 2000 | 3 | 2 | 24kw | 300L | |||||||
| HH-2 | 4kw | 2500L | 6 | ø1400*1850 | 36-60 | 2500 | 4 | 2 | 24kw | 380L | |||||||
| HH-3 | 4kw | 3600L | 8 | ø1500*2300 | 36-60 | 3500 | 4 | 2 | 36kw | 750L | |||||||
| HH-4 | 5.5kw | 4500L | 10 | ø1600*2550 | 36-60 | 4000 | 5 | 2.5 | 36kw | 900L | |||||||
| HH-5 | 7.5kw | 6000L | 16 | ø1800*2650 | 36-60 | 5000 | 5 | 2.5 | 48kw | 1100L | |||||||
| HH-8 | ø2200*2900 | ||||||||||||||||
| Notice:The product appearance can be made into a mirror,Please give us your requirements or specific parameters, and we will give you a plan and price. If you have any questions, please contact our staff and we will provide the best service. | |||||||||||||||||
