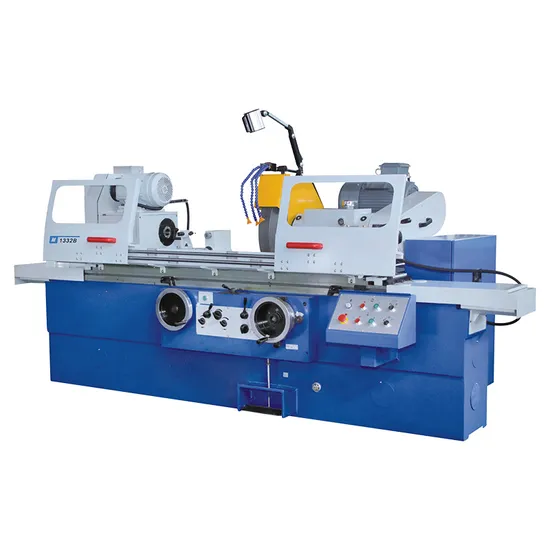

New Arrival M1332B MC1332B Cheap Grinder Universal Cylindrical Grinding Machine

Product Description

Main featurea:
M1332B cylindrical grinding machine is designed on the basis of M1332A cylindrical grinding machine. It is suitable for grinding cylindrical or conical parts ,for its accuracy IT6-IT5.
Worktable longitudinal travel driven by hydraulic at infinitely-variable-speed,or driven by handwheel. Lubrication for hole throttle unloading form.
Wheelhead cross travel provided with hydraulic rapid advance and withdrawal ,manual microfeed And feed grinding wheel automatic cycle function.
Workpiece,wheel,oil pump and coolant pump respectively driven by their individual motor.
wo sets of silding bearing consisting of four-shoes used as wheel spindle bearings.The spindle bold,increased motor,high grinding efficiency.
Wheel dresser mounted on the tailstork,and hydraulic tailstock top bavk device.
The machine with the moving parts of electrical,hydraulic chain,safe and reliable operation.
MC1332B Series table moves using hydrostatic guideway.

Description	unit	M1332B×1000	MC1332Bx2000
Grinding length	mm	1000	2000
Grinding diameter	mm	Φ8~Φ320	Φ8~Φ320
Center height	mm	180	180
Max.workpiece weight	kg	150	500
Worktable speed	m/min	0.1~4	0.1~4
Max.peripheral speed of grinding wheel	m/s	35	35
Max.travel of table	mm	1100	2100
Swivel range of worktable	.	3~+7°	2~+5°
Externalwheef size	mm	Φ600×75×Φ305	Φ600×75×Φ305
Workhead spindle speeds	r/min	26,52,90,130,180,260	26,52,90,130,180,260
Grinding spindle speed	r/min	1100	1100
Headstock top	morse	NO.5	NO.5
Tailstock top	morse	NO.4	NO.4
Rapid advance and withdrawalamount	mm	50	50
Wheelhead displacement oer rev of handwheel coarse/fine	mm	2/0.5	2/0.5
Wheelhead displacement oer div of handwheel coarse/fine	mm	0.01/0.0025	0.01/0.0025
Machine motor power	kw	14.27	14.27
Overall dimensions(L×W×H)	mm	3605×1810×1515	5605×1810×1515
Machine weight	kg	4000	6600

---
