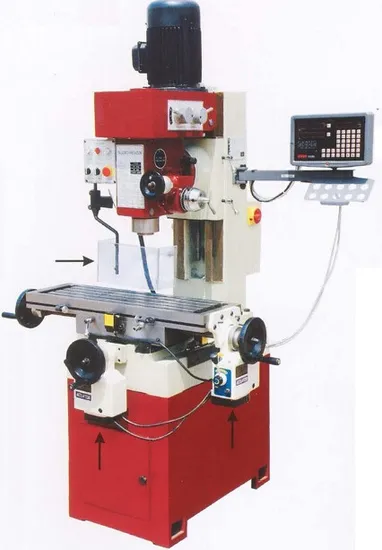

ZX50CF High Speed Drilling and Milling Equipment

Product Description

Features
Zx50CF High Speed Drilling and Milling Equipment
Milling and drilling machine
Swivel table 45 degree
Main specification

Specifications	ZX50CF
Max. drilling capacity	50mm
Max. horizontal milling capacity	100mm
Max. vertical milling capacity	25mm
Max. boring capacity	120mm
Max. tapping capacity	M16
Spindle taper	MT4/ISO30
Spindle speed	115-1750rpm (8 steps)
Spindle travel	120mm
Table size	800(1000)x240mm
Table travel	400(600)x230x380mm
Main motor power	0.85/1.5KW
N.W./G.W.	600kgs

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
