Product Details

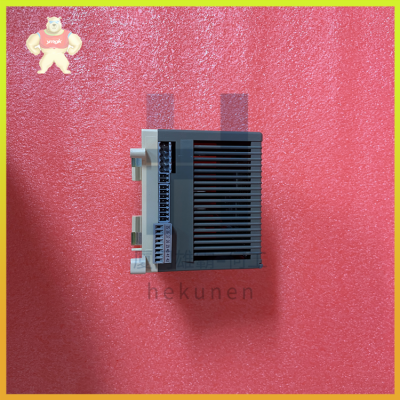

Product Description
Product Description
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
In general, the technical system data listed under "System data and system configuration" in chapter 1 of volume 2 of
the "Advant Controller 31" system description are valid. Additional data or data which are different from the system data
are listed as follows.
Technical data for the complete unit
Permissible temperature range during operation 0...55 °C
Rated supply voltage 24 V DC
Max. current consumption 0.2 A
Max. power dissipation 5 W
Protection against reversed polarity of power connection yes
Number of binary inputs 1 as enabling input for the analog outputs
Number of analog input channels 8 or 16, depending on the operating mode
Number of analog output channels 8 or 16, depending on the operating mode
Electrical isolation CS31 system bus interface from the rest of the unit,
1 binary input from the rest of the unit
Address setting and configuration Coding switch under the cover located on the
right side of the housing
Diagnosis see chapter "Diagnosis and displays"
Operation and error displays a total of 17 LEDs,
see chapter "Diagnosis and displays"
Method of connections removable screw-type terminal blocks
supply terminals, CS31 system bus max. 1 x 2.5 mm2 or max. 2 x 1.5 mm2
all other terminals max. 1 x 1.5 mm2
Max. length of the analog cables,
two-core shielded and cross section > 0.5 mm2 100 m
Conversion error of the analog values
(non-linearity, factory calibration and resolution) typ. 0.5 %, max. 1 %
Max. permissible potential difference between
terminal M (minus of the supply voltage) and
terminals AGND (minus of analog inputs and outputs) ± 1 V
Common reference potential for all analog signals AGND (minus terminal of analog inputs and outputs)
Electrical isolation of analog signals none (see also Fig. 5.4-2).
Technical data of the binary input (enabling input for analog outputs)
The analog outputs must be enabled by a binary 1 signal (24V) at terminals 25 (+) and 26 (-).
Signal level 0 signal (-30...+5 V) voltage outputs are at 0 V,
current outputs are at 0 mA
1 signal (+13...+30 V) analog outputs are active
Electrical isolation yes, i.e. the reference potential and the
control signal must be connected
>>
