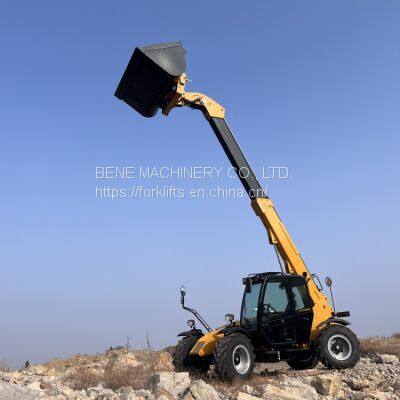

Chinese 2.5 ton telehandler 3 ton telescopic forklift loader VS XCMG MANITOU telehandler low pricet
| tem | Specification | Remarks |
| Rated load (kg)25 | 2500 | with forks |
| Operating weight(kg) | 8650 |
|
| Max. Lifting height of the main hook (mm) | 7605 | Distance from the main hook to the ground |
| Max. lifting height of the complete arm (mm) | 8000mm | Front point hoist |
| Wheel base (mm) | 2988 |
|
| Front tread (mm) | 1638 |
|
| Rear tread (mm) | 1785 |
|
| Min. groud clearance (mm) | 310 |
|
| Overall length (mm) | 5288 | Without hook |
| Overall width (mm) | 2310 |
|
| Overall height (mm) | 2715 |
|
| Height of the cab (mm) | 2400 |
|
| Length of rear overhang (mm) | 1055 |
|
| Max. outreach of the main hook (mm) | 4800 | Horizontal direction |
| Max. outreach of the complete arm (mm) | 7900 | Horizontal direction |
| Tipping angle of hook, up/down (°) | 22°/24° |
|
| Tipping angle of big arm, up/down (°) | 14°/43° |
|
| Min. turning radius (mm) | 6800 |
|
| Max. gradeability (°) | ≥20% |
|
| Max. travelling speed (Km/h) | 25 |
|
| Front tyre | 11.00-20 |
|
| Rear tyre | 9.00-20 |
|
| If with fork, then the load capacity will be 2.5t |
