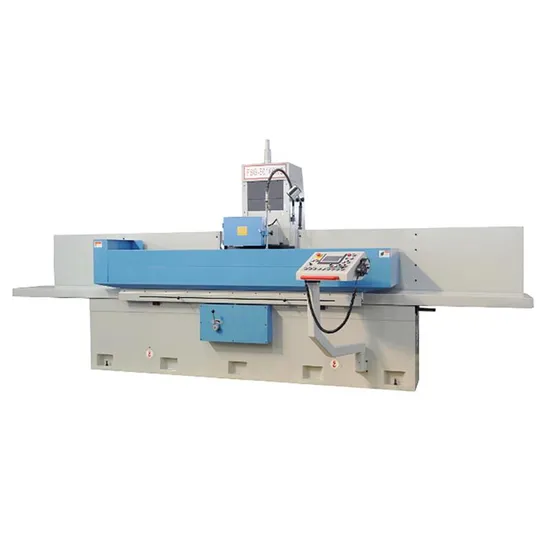

50 Series Column Mobile Program-Controlled Surface Grinding Machine

Product Description

Product Parameters

Specifications
Item	Unit	FSG50100NC	FSG50160NC	FSG50450NC
Table size W*L	mm	500*1000	500*1600	500*4500
Max.grinding size	mm	500*1000	500*1600	500*4500
Max.distance from table to spindle center	mm	600	600	600
Magnetic chuck size(optional equipment)	mm	500*1000*1	500*800*2	500*1000*4
Speed of table longitudinal move	m/min	5~25	5~25	5~25
Wheel head cross move
Auto intermittent feed	mm/t	0~30	0~30	0~30
Rapid speed	mm/min	0~1500	0~1500	0~1500
Feed of MPG	mm/div	0.005	0.005	0.005
Vertical motion
Rapid down speed	mm/t	0.005,0.01,0.02,0.03,0.04	0.005,0.01,0.02,0.03,0.04	0.005,0.01,0.02,0.03,0.04
Rapid speed	mm/min	0~300	0~300	0~300
Feed of MPG	mm/div	0.005	0.005	0.005
Grind wheel size	mm	350*40*127	350*40*127	350*40*127
Spindle motor power	kw	7.5	7.5	11
Packing size	cm	399*225*250	564*225*250	1150*238*250
Gross weight	kg	5500	6000	14500
