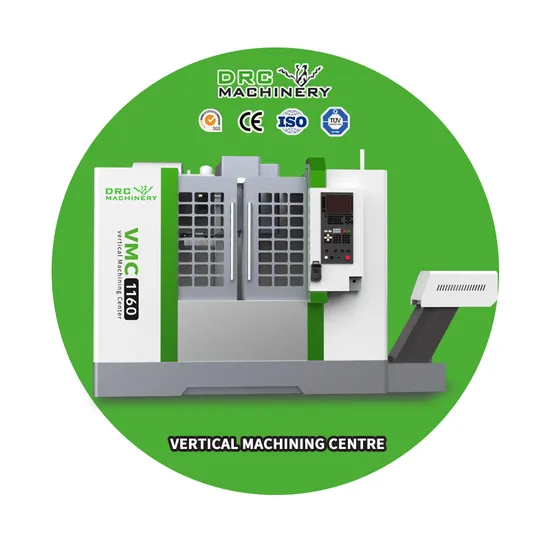

High Rigidity 3 Axis Vmc1160 Vertical Milling Machine Center with Fanuc

Product Description

Factory Price CNC Milling Machine VMC1160 Machining Center VMC Fresadora Cnc Vertical Machining Center CNC Vertical machining center features: 1.Taiwan spindle unit with 7.5KW servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and
high speed is good for precision light cutting. 2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can
decrease the gap of different guideway, and it can increase precision meantime. 3. It adopts Taiwan PMI precision ball screw, Taiwan precision locknuts and Japan NSK bearings. It directly connected to
flexible coupling, so that it can achieve a high effectiveness and low backlash. 4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time. 5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and clearance error, so that the positioning accuracy of each axis is more accurate, and it's more suitable to produce high - precision parts. 6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway,
ball screw and so on. Product Parameters

Model	VMC 1160 (GSK system)
Travel parameters of 3 axis
X /Y/Zaxis travel	1100/600/620mm
Spindle face to table distance	120-720mm
Distance between spindle center and column guide surface	675mm
Worktable parameters
Worktable size	1200×600mm
Maximum load bearing of worktable	1000kg
T Shot	5×18×120mm
Feeding parameters
X/Y/Z axis rapid movement rate	24/24/24m/min
Feed moving velocity X, Y, Z	1-10m/min
Spindle parameters
Main shaft connection	Belt
Spindle taper	BT40-150
Range of spindle speed	8000rpm
Spindle motor power	(Alternating current servo)11kW
ATC paremeters
ATC capacity	24qty
Maximum tool size	Φ350/250mm/Φ150mm(tool from a distance)
Maximum tool weight	8kg
Precision
PositionaI accuracy(JIS standard)	±0.008/300mm
Repeated positioning accuracy(JIS standard)	±0.005mm
Shape and weight
Machine size	3100×2550×2900mm
Weight	6800kg

---
