Full Automatic Angle Bead Mesh Making Machine (hot sale)

Product Description

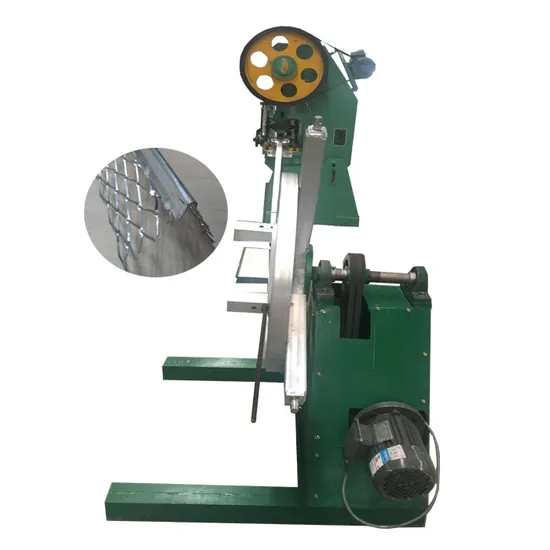

Angle bead machine

1.MACHINE FUNCTION
The products are widely used in building.The wing of corner beads can inosculate.The specification of corner beads making machine can produce are as the following table:

NO	Items	Unit	Basic parameter
1	Thickness	mm	0.2-0.5mm
2	Width of Mid-sheet	mm	30
3	Standard length	mm	2000-3000
4	Diamond mesh	mm	Max 75
5.	Mesh size	mm	70*70 and 50*50(need two different die)
6.	motor	KW	3.0kw

2.COMPONENT PART OF THE MACHINE

Decoil, punching machine, curve and curve mold, automatic cutter, setting length device, and electric control system
3.main technical parameters
The corner beads making machine basically consists of two main systems,punch and curer-cutter.
The main technical parameters of the machine are as the following table:
Punch

NO	Item	Unit	Basic parameter
1	Motor	KW
			2.2
2	Work Voltage	V	380
3	Stress	KN	250
4	Punch Times	t/m	100-120(about 3-5m/min)
5	Slip Distance	mm	70
6	Slip Adjusting	mm	40
7	Size of work table	mm	530×320
8	Hole of work table	mm	130
9	size	mm	1200×1000×2200

Curve-cutter

1	Electric motor	0.75KW and 3KW
2	Work voltage	380V
3	Rate of production	3-5m/min
4	Size	1500*520*900mm

Air pump

1	Electric motor	1.5KW
2	Work voltage	220V
3	stress	0.55-0.8mpa

Finish products
Corner mesh can form a straight edge on the ridgeline of the stucco project to resist cracking or cracking, and protect and reinforce the most vulnerable part of the plaster, and its mesh wings can be firmly anchored on either side of the ridgeline. To the full depth of the plaster. Corner mesh is very important for stucco decoration, because the stucco corner is most likely to be damaged during the construction of the building and when it is finished, and it can save a lot of time because of its easy construction.

Our other products
Our company information
1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on.
FAQ: Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case

---
