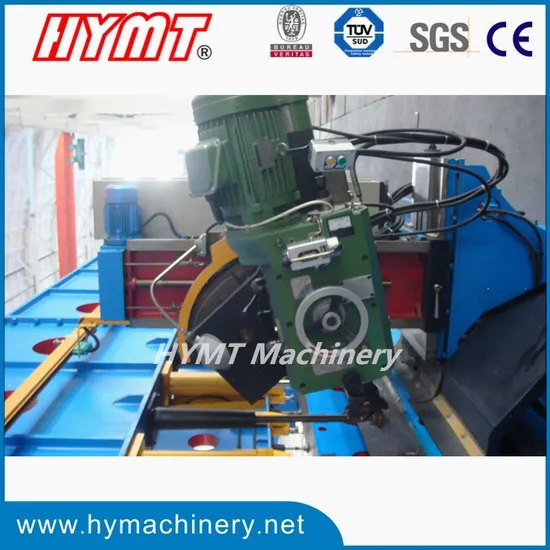

XBJ-6 Metal Sheet single Head edge milling Chamfering Machine

Product Description

Main functions:
Compared with the traditional edge milling machines, this series machines is dismountable in their tracks, more rational in structure by heat-treatment of the bench, more reliable and stable in the milling and turning head's running. The feed and feed-back systems are fully independent respectively. The angle of the milling tool's tray is convenient in adjustment, and the custom-built tool rest and the normal tool rest can be inter-converted. They are the updated products of the traditional edge milling machine
Main specifications:.

Model	XBJ-6	XBJ-9	XBJ-12
The angle of milling	0-45 degree
The thickness of being processed steel plate	6-50mm
The max depth of milling bevel edge at one time	12mm
The traveling speed of crosswise milling	0.3/0.5m.min
Back stroke milling speed	5m/min
The rev. speed of milling spindle	125-800m/min
The working pressure of hydraulic system	3.5
The number of cylinders	8 pcs	11 pcs	15pcs
The height between platform and ground	900mm
The power of driving motor	1.1/0.85KW
The power of milling motor	3KW
The power of pump motor	5.5KW	5.5KW	5.5KW
Overall dimensions	772x260x205cm	1072x260x220cm	1372x260x230cm

HYMT Machinery services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as
the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's
materials for test. After making sure machine is the best performance, then make shipments.

---
