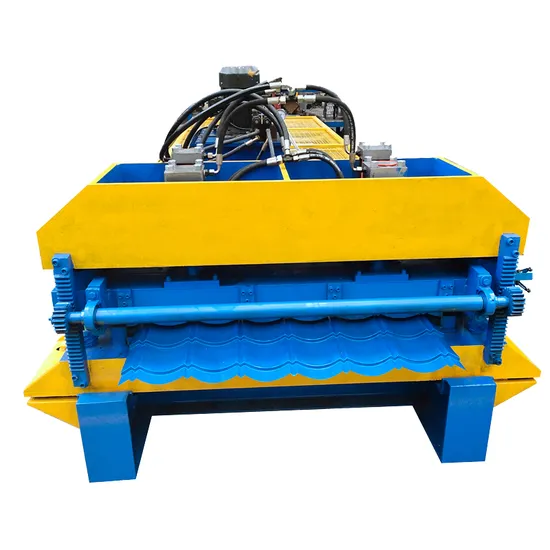

Hydraulic Roof Metal Steel Sheet Roof Panel 980 Glazed Roll Forming Machine

Product Description

Product Description
Metal Roof Tile Sheet Roll Forming Machine Roofing Tiles Houses Building Materials
01
PLC
Brand
PLC brand:Delta
Inverter brand:Delta Low electric
part:Schneide
Encoder:OmronFunction:
1.Adoptedaviation plugseasy
installation.
2.Full automatic easy operation.
3.0peration language:English(providecustomized
4.National coinsurancespar parts Brand Siemensand
Schneide.
02
TRANSMISSION DEVICE
Gearbox drive stable and no loose.
03
ROLL FORMING DEVICE
1.45# SteelChromed Treatment (Cr Thick ness:0.05 Mm),Anti-Corrosion,Increase Hard- ness, Ensure The Precision And Good Abra-
sion Performance.
2. Each roller has number and with keynotes,
it can fix on the shaft stablely

04
FEEDING DEVICE
1. Rubber rollers protect raw material surface
2. With handwheels easy adjust for feeding differ- ent thickness raw material.
3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet.

05
HYDRAULIC CUTTING DEVICE
1.Adopt double oil cylinder more stable than single oil cylinder
2.Hydraulic motor power 5.5 kw with energy accumulator
3.Cutter material:GB-Cr12 with heat treatment
4.Cutting length tolerance±10m/2mm
5.Cutting feature:Steady and safe working condition and low
sounds

Product Parameters

ltem	Name	Description
1	Decoiler	Capacity:5 tons
2	Material	Steel Coil
3	Thickness	0.3-0.8mm
4	Transmission	chain/Gear/Gearbox
5	Speed	15m/min
6	Roller	40Cr steel with quenched treatment,chromedd on the surface
7	Shaft	steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment Hardness58-62
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta,Siemens, Schneide
13	Voltage	380V,50HZ,3PH(or as customers'requesr)

Detailed Photos


Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
