Basic Info.
Controlling Mode
Hydraulic
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Max. Drilling Capacity
50mm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
Production Capacity
50 Sets Monthly
Product Description

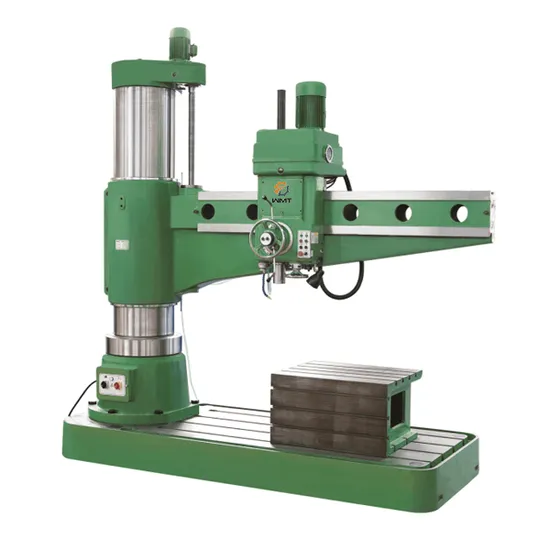

Main specificaiton for Radial drilling machine model Z3050×16/1
| Specification | Units | Z3050×16 |
| Max. drilling diameter | mm | 50 |
| Distance between spindle axis and column | mm | 350-1600 |
| Distance spindle nose and work surface of base | mm | 320-1220 |
| Rocker arm lifting distance | mm | 580 |
| Rocker arm lifting speed | m/s | 0.02 |
| Spindle travel | mm | 315 |
| Spindle taper | Morse | 5 |
| Range of spindle speeds | r/min | 25-2000 |
| Number of spindle speeds | step | 16 |
| Range of spindle feeds | mm/r | 0.04-3.20 |
| Number of spindle feeds | step | 16 |
| The maximum torque of the spindle | N.M | 500 |
| Spindle maximum feed resistance | N | 18000 |
| Table size | mm | 630×500 |
| The spindle box of horizontal moving distance | mm | 1250 |
| Spindle motor power | kw | 4 |
| Hydraulic clamping motor power | kw | 0.75 |
| Cooling pump motor power | kw | 0.09 |
| Arm lift motor power | kw | 1.5 |
| Machine weight | kg | 3500 |
| Overall dimension | mm | 2500×1070×2840 |
|
Standard accessories for Z3050X16/1
| Drilling Chuck |
| Reduction Chuck |
| Spindle Bar |
| Wedge Drift |
| Operation Manual |
| Certification |
| Packing List |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed machine pics.
>>
