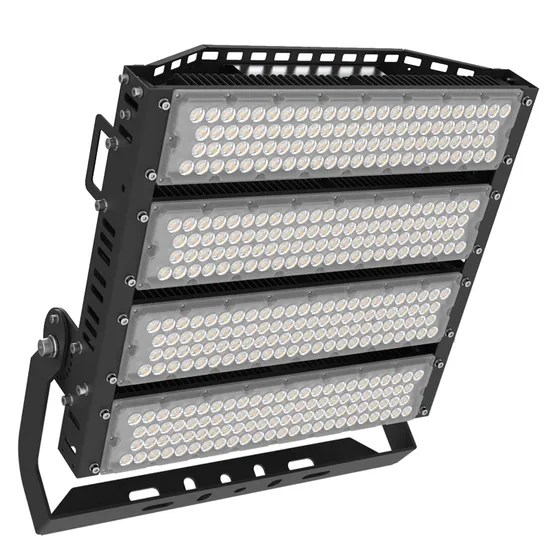

IP66 1000W High Power Stadium Lamp Outdoor Floodlight Spotlight Searchlight Projector High Mast Light 5050 SMD LED with Dali DMX Dimmable Control System

Product Description

IP66 1000W high power stadium lamp outdoor floodlight spotlight searchlight projector high mast light 5050 SMD led with DALI DMX dimmable control system
Features of high power led sport stadium high mast flood light:
1.IP66 rated LED flood light.
2.Rotatable modules offering maximum customisation.
3.Heavy duty stirrup mounting bracket.
4. Multiple optics available,choose from 20°/40°/60°/49*21°/30*70°
5.Can be installed as a floodlight or high bay.
6.With illumination equivalent to 250W-5000watt metal halide fixtures.
7.you'll enjoy an "instant-on, flicker-free" cold start, and industry-leading 150Lm/W.
8.Protractor scale for easier aiming.
9.50,000-hour operating life means years of maintenancefree operation.
10.Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
11.Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.
Datesheet:

Adjustable angel 500-1500W led stadium lamp
Model	QH-FLMS-500W	QH-FLMS-750W	QH-FLMS-1000W	QH-FLMS-1500W
Power	500W	750W	1000W	1500W
Luminous Flux	150-160LM/Watt
LED Source	5050 SMD
LED Qty	192pcs	288pcs	384pcs	576pcs
LED Driver	Meanwell or Inventronics
Inpuct Voltage	90-305V AC 50/60Hz
Color Temperature	3000K,4000K,5000K,6500K max ot 20000K
Color Rendering Index	CRI>80
IP Rating	IP66
Beam Angle	Choose from 20°/40°/60°/49*21°/30*70°
Housing Color	Black
Working Life	>50,000 hours
Warranty	5 years
Work temperature	-40ºC~+90ºC
Body Material	Die-casting aluminum housing
Gross weight	6.5Kg/pcs	14Kg/pcs	18.4Kg/pcs	22Kg/pcs
Packing Size	65*26*25cm/pcs	65*40*30cm/pcs	65*56*30cm/pcs	65*72*30cm/pcs

GENERAL INFORMATION
Mounting Module	Bracket system
Operating Temperature	-40ºC/+90ºC
Storage Temperature	-40ºC/+90ºC
Lens Options	8°;20°;40°;60°;90°;P50;P65
Main Reference Company Standards	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1

ELECTRIC INFORMATION
Electrical Class	Class I
Norminal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
LED Current	SMD5050 160mA@24V
LED Power&Luinous flux	500W 75,000LM 750W 112,500LM 1000W 150,000LM 1250W 187,500LM 1500W 225,000LM
Power Factor	≥0.97(at full load)
Flickering Percentage	≤8%;≤3% (optional)
THD	≤15%
Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
Surge protection options (kV)	L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
Mains connection	For cable max section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS
Housing	ADC 12 die-casting +AL 1070 pure aluminum
Optic	PC
Housing Finish	Powder spraying surface treatment, corrosion resistance
Refractor	PC UV0
Standard Colour	RAL9017 Black;RAL9007 Gray(optional)
IP	IP66
Impact Housing Resistance	IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)
Impact Lens Resistance	IK08 (5 J)
Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)

OPTICAL INFORMATION
Led color temperature	3000K,4000K ,5000K ,5700K,6500K
CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
LED Brand	CREE;OSRAM;Nichia
Upward light output ratio	0%
Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Lifetime of the LED's	Tq =45°,>50000h - L70B50

Aplications :square ,park ,port,airport ,shipyard ,container wharf,golf course ,foodball field .ect.
About our company
Shenzhen Qinhan Lighting Co., Limited was founded in 2008, specializing in the production of smart LED lighting, is a China Led lighting supplier who integrates research, development, production, sales and service.We supply a variety of state-of-the-art Led lighting products.Including LED Street Light, LED High Bay Light, LED Flood Light, LED Linear Light, and more.
FAQ:
Can we do our brand? Can you print or emboss our logo on the tank? And our own brand box?A:Yes!
Are you factory?
A: Yes, with 10 years warranty.
How does your factory do regarding quality control ?
A:Quality is priority. people always attach great importance to quality controlling from the very beginning to the very end.
I want high quality LED flood light, can you do?
A: Yes, quality is our culture,we only use best components to build our led flood lights. How would you do if there are some lights that can't work when I receive the goods?
A: Don't worry, we will give you same quantity of good lights for compensation in your next order.

How does your factory do regarding quality control?
A: Quality is priority. people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, DLC, ROHS, FCC, ISO900, authentication.
Where is your factory located? How can I visit there?
A: Our factory is located in Dongguan City, GuangDong Province, China.Payment terms
A:T/T, L/C at sight, Western Union

---
