Plastic Children Chair Inject/Injection Mould/Molding Machine/Machinery 480ton

Product Description

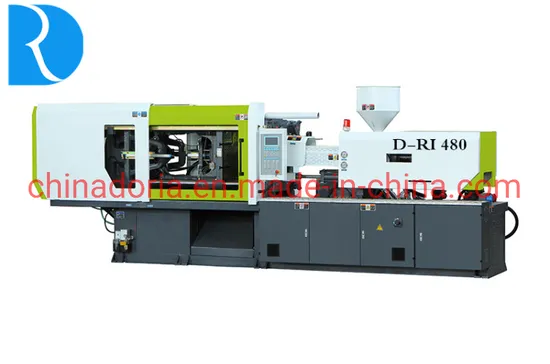

Specification of D-RI480 plastic injection moulding machine
1. Product details:

2. Specification of machine:

Model Item	D-RI480
Screw diameter(mm)	75
Injection pressure(Mpa)	184
Shot weight(PS) (g)	1469
Screw L/D ratio	22:1
Screw stroke (mm)	360
Screw speed(r.p.m)	5-150
Injection rate (cm3/s)	371
Plasticizing capacity(g/s)	58
Clamping stroke(tons)	480
Mould clamping stroke (mm)	750
Max. daylight opening (mm)	1550
Mould thickness (Min.-Max.) (mm)	300-800
Space between tie-bars (mm)	810*785
Hydraulic ejection force (tons)	15
Hydraulic ejector stroke (mm)	200
Max. pump pressure(Mpa)	17.5
Motor power(KW)	18.5+30
Heater power(KW)	24.7
Temperature control zones	6+1
Tank capacity (L)	950
Machine dimension(L*W*H)	8600mm*2200mm*2400mm
Machine weight(ton)	22

3. Auxiliary equipments of D-RI480:
3.1, the specification of Hopper Dryer (200E):
3.1.1, size: 1180*840*1760mm;
3.1.2, heating power: 12KW;
3.1.3, weight the equipment: 110KG;
3.1.4, motor power: 350W;
3.1.5, output distance: 3.5M;
3.1.6, weight of feeder: 200KG;
3.1.7, internal diameter of pipeline:φ38;
3.2, the specification of Water Chiller 8HP (OUBA):
3.2.1, packing size of the equipment:
1600*750*1300mm;
Size of machine: 1120*700*1260mm;
3.2.2, Compressor power: 5.58KW;
3.2.3, weight: 315KG;
3.2.4, refrigerating output: 22.7KW;
3.2.5, water-pump power: 1HP;
3.2.6, freezing water flow: 3.9M3/H;
3.2.7, working voltage: 380V-415V/3P /50HZ;
3.2.8, Refrigerants: R22
3.3,the specification of Dehumidifier VD-160
3.3.1, packing size of the equipment:
1600*730*1250mm;
Size of machine: 1530*660*1050mm;
3.3.2, Dry air flow: 160M3/H;
3.3.3, weight: 215KG;
3.3.4, power of dry fan: 1.5KW;
3.3.5, power of regenerative fan: 0.55KW;
3.3.6, heating power of heating pipe: 5.4KW;
3.3.7, working voltage: 380V-415V/3P /50HZ;
3.3.8, caliber of outlet pipe and inlet pipe: 2.5";
3.4,the specification of Plastic grinder 500-B
3.4.1, Size of machine: 11100*W1400*H1800mm;
3.4.2, rotating blades: 6PS;
3.4.3, fixed blades: 4PS;
3.4.4, screen caliber:φ12mm;
3.4.5, valid caliber: 500*400mm;
3.4.6, theoretical grinding capacity: 550KG/H;
3.4.7, working voltage: 380V-415V/3P /50HZ;
3.4.8 Power of mating motor: 11KW;
4. Workshop of machine:
5. Warehouse of machine:
7. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
8. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
