Hot Selling Ec Shaded Pole Freezer Fan Motor with Fan Blades for Refrigeration

Product Description

Basic Info.

Model No.	6115
Brand	Sikelan
Height of The Motor	62mm+/-1
Bearing	Ballbearing
Transport Package	Carton
Origin	China

Certification	ISO9001, CCC
Voltage	100-240V
Noise	39.5dba
Guarantee	5 years
Trademark	SIKELAN

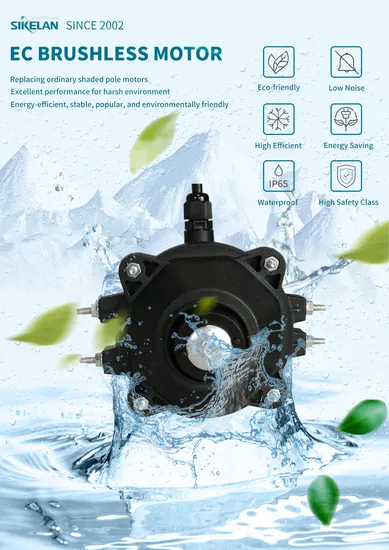

Product Description Space-saving EC Exiel Motor for refrigeration
EC MOTOR for Refrigeration is a high-performance electronically commutated motor, specifically designed for refrigeration and air conditioning systems. lt provides superior efficiency, precise control, and long-lasting reliability for demanding applications
Advantages:
1) High Efficiency:
The EC MOTOR for Refrigeration has a brushless DC design that provides up to 70% efficiency, which is significantly higher than traditional AC motors.The motor's integrated electronic control system continually monitors operating conditions and adjusts the motor's speed, resulting in reduced energy consumption, lower operating costs, and longer service life.
2) Precise Control:
The motor has a smooth, continuous speed control that enables precise temperature and humidity regulation. The EC MOTOR for Refrigeration can operate at variable speeds to match system demand, making it an ideal choice forenergy-efficient systems.
3) Reduced Noise and Vibration:
The brushless DC design and electronic control systerresult in less noise and vibration compared to traditional AC motors. This makes it anexcellent choice for quiet environments
4) Compact Design:
The compact design of the EC MOTOR for Refrigeration provides a high power-to-size ratio, which makes it an ideal choice for space-constrained applications.
Specifications:
1) Power:
The EC MOTOR for Refrigeration has a power output range from 50W to1500w.
2) Voltage:
The motor operates on a range of voltages, from 115V to 230V.
3) Speed:
The motor's speed can be controlled between 300RPM to 1800RPM depending on the application.
4) Control:
The motor features an integrated electronic control system that provides precise speed control and system monitoring.
5) Operating Temperature:
The motor can operate in a temperature range from -30°C to 50°C
Overall, the EC MOTOR for Refrigeration is a highly efficient, reliable. and precise motor designed to meet the demands of refrigeration and air conditioning applications. lts superior performance makes it an ideal choice for OEMs and system integrators looking to improve system efficiency and reliability.
Detailed Photos
Productions appliactions:
As long as you are a manufacturer of super-market refrigeration equipements, or beverage cabinets, or beer coolers etc, you will be in need of our EC Brushless Motor for Fan.
Because our EC Motor for Fan has below significant advantages.
Our Advantages 1) Energy Saving
It's power consumption is around 1/3 of Shade-pole motor to meet the same function.
Such a siginificant energy saving is what your customers always wanted, considering the huge power consumption where your equiment is used for.
It's also meeting high energy standard of North American and European market.
2) Job Saving
We have 2 models of EC Motor that are enough to cover almost all 7 models of Shade-pole motor for different refrigeration equipements, because EC Motor is designed to be speed adjustable.
- Adjustable speed saves your job of model selection for both purchaing team and technical team.
- Long life saves your job of after-sales.
- Energy sameing saves your job of explaining to your buyers.
- Wide voltage range saves your marketing policy to different markets.
-
Below listed the comparasion between our EC Motor and regular Shade-pole Motor.

	EC Motor 4810A	Shade-Plole Motor 10W
Input Power	30W	100W
Out Power	20W	25W
Voltage	100-240V	110V or 220V
Height of The Motor	80mm +/-1	113mm +/-1
Noise	39.5dBA	60dBA
Motor Life	8~10years	3~5years
Bearing	Ball bearing	Sleeve bearing
Efficient	up to 70%	Max 18%
Speed	300~1800rpm	1300rpm
Certificate	UL, VDE, CE, CCC, EX, Rohs	UL, VDE, CE, CCC, EX, Rohs
Protect Level	IP65	IP42

Product Parameters:

Load Speed	200mm Blade		230mm Blade		254mm Blade		300mm Blade
	28°	34°	28°	34°	28°	34°	28°	34°
1300rpm	√	√	√	√	√	√	√	√
1500rpm	√	√	√	√	√	√	√	√
1800rpm	√	√	√	√	√	√	√	√

Model	Voltage	Max Load	Rotate Speed	Min Noise	Min Vibration	Max Power	Max Efficiency
No.	v		rpm	dB(A)	mm/s	W	%
MDAC6115A Pro	100~240V	230, 34°	300~2300	39.0	1.1	20	75

Load Speed	200mm Blade		230mm Blade		254mm Blade		300mm Blade
	28°	34°	28°	34°	28°	34°	28°	34°
1300rpm	√	√	√	√	√	√	√	√
1500rpm	√	√	√	√	√	√	√	√
1800rpm	√	√	√	√	√	√	√	√
2300rpm	√	√	√	√	√	√	√	√

Certifications Our EC Motor for Fan are in the process of certificate UL, VDE, CE, CCC, EX, Rohs.
All certificate will be listed here when they are ready.

Producing and R&D
How to Order If you are interested in our EC Motor for Fan, please contact to us for further details.
We will follow up all details with you, using her over 15years experience of international business services, supported but factories and R&D team with their over 20years of specialibity in the field.

Related Products As you are in need of our EC Motor for Fan, you may found yourself are also in need of below products.
Refrigition Compressor,
Condensate Pump,
Filter Driers,
Defost Timer.
We are also specialized manufacture for these products. Please client the pictures to find other products you may in need of .

Dear customers, if u are interested in please contact with us:
Miss Anna.Li

---
