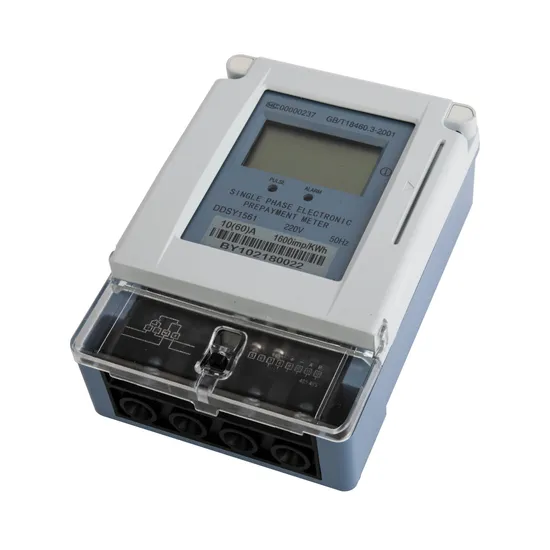

Ddsy1560 Prepaid Kwh Meter

Product Description

PRODUCT INFORMATION
DDSY-1560 Series Single phase two wire electronic prepaid energy meter is a kind of new style energy meter. It presell of electricity, run out of automatic power off, power threshold can be set
DDSY-1560 MAIN TECHNICAL PARAMETERS

Type	DDSY-1560
Accuracy	Class 1
Rated Voltage	220V Or 240v Or Other
Rated Current	2.5-10A, 5-20A, 10-40A, 15-60A, 20-80A Or other
Starting Current	0.04%
Insulating Property	Impulse voltage 6kv
Frequency	50Hz Or 60Hz
Display	5 Integer Plus 1 Decimal

If you need different Rated Voltage or rated current, please contact with us.
DDSY-1560 MAIN FUNCTIONS

Type	DDSY-2L
Terminal	Impulse
Protocol	/
Display	LCD
Active Kwh	Y
Reactive Kwh	/
Voltage	/
Current	/
kW	/
Frequency	/

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.
DDS-2L APPEARANCE 1 Front Side
2 Left Side
3 Right Side
4 Back Side
5 Top Side
6 Bottom Side
ABOUT HUADU
Huadu Electrical Technology CO.,Ltd is located in Wengyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.
The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Huadu keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. certification with superior quality are popular in the global market.
Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.
We believe that our company will be more powerful and far better by your support!

---
