Niluo High Brightness Outdoor Full Color RGB P10 LED Display Screen Module

Product Description

HD Display Seamless Splicing LED P10 Outdoor Waterproof Full Color Screen Module
Parameter

Unit Module	Item No.	SRX-P10
	Module Size	320mm*160mm
	Pixel Pitch	10mm
	Pixel Density	10000Dots/m2
	Pixel Color Configuration	1R1G1B / 3 in 1
	Module Resolution	32(W)*16(H) dots
	Module Max Power Consumption	25w
	Module Thickness	17cm
	Module Weight	0.25kg
	Driving Method	Constant Current Driving
	Scanning Method	1/4 scan
	Interface	HUB75
	Brightness	≥6500cd/m2
LED Screen Cabinet	Cabinet Size	960mm*960mm
	Module Quantity	18pcs
	Power Supply	5V/40A 5V/60A
	Cabinet Resolution	96*96
	Optimal Viewing Distance	10M~50M
	Optimal Viewing Angle	160°(W)*120°(H)
	Working Temperature	Storage temperature -35°C ~ +80°C
		Working temperature -20°C ~ +50°C
	System Operating Humidity	10%~95%
Power Supply	Operating Voltage	AC 220V±10%
	Average Power Consumption	350W/m2
	Max Power Consumption	≤700W/m2
	Current	≤20mA(single LED)
Control System	Control Board	2G External Video Card/i5 processor
	Operating System	WIN7/8/10/XP
	Control Model	Synchronization Control
	Driving Device	Constant Current Driving
	Refresh Rate	≥1920Hz
	Grey Scale	RGB each256, can display16.7m colors
	MTBF	≥9000Hours
	Power Switch	Automatic Switch
	Display Mode	800*600 /1024*768 /1280*900 /1920*1080

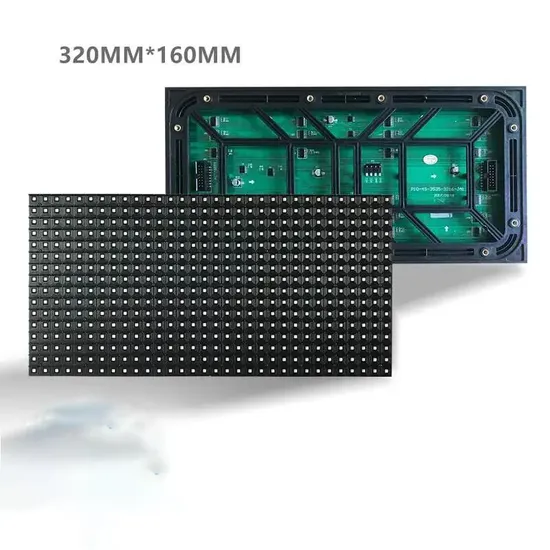

P10 Outdoor LED Module
Production Process
FAQ
Our Services
project case
Our company
Jiangxi Niluo electric Appliance Co., Ltd. Is a comprehensive Led manufacturer integrating R&D, production, sales and service.The company is mainly engaged in medium and high-end display products such as 1.2P to 10P led display screens and supporting products such as indoor and outdoor advertising andbusiness meeting.Suitable for shopping center, large building glass wall, stage background led display, concerts, exhibitions, chain store, clothing store, etc.It can be used as flexible screen and transparent screen, and the whole scheme can be customized according to customers' needNiluo has an independent R&D center and 7 years of mature development experience large modern chemical plants and quality inspection centers ensure that every led product produced meet international standards.
Workshop
Certification
Packaging & Shipping
FAQ
1. About us We are manufacturer, so the price is competivite
2. About price The price is negotiable, it can be changed according to the Qty and packing requirments
3. About delivery Our production time is about 10-25 working days
When we confirmed the order, we can start production after receiving your deposit (30% TT in advance)
4. About payment term 30% T/T in advance as deposit before production, the balance before delivery.
5. About package Wooden case for fixed installation display
Flight case for rental display
Carton for module

---
